IME30-15BNOZW2S | Inductive proximity sensors

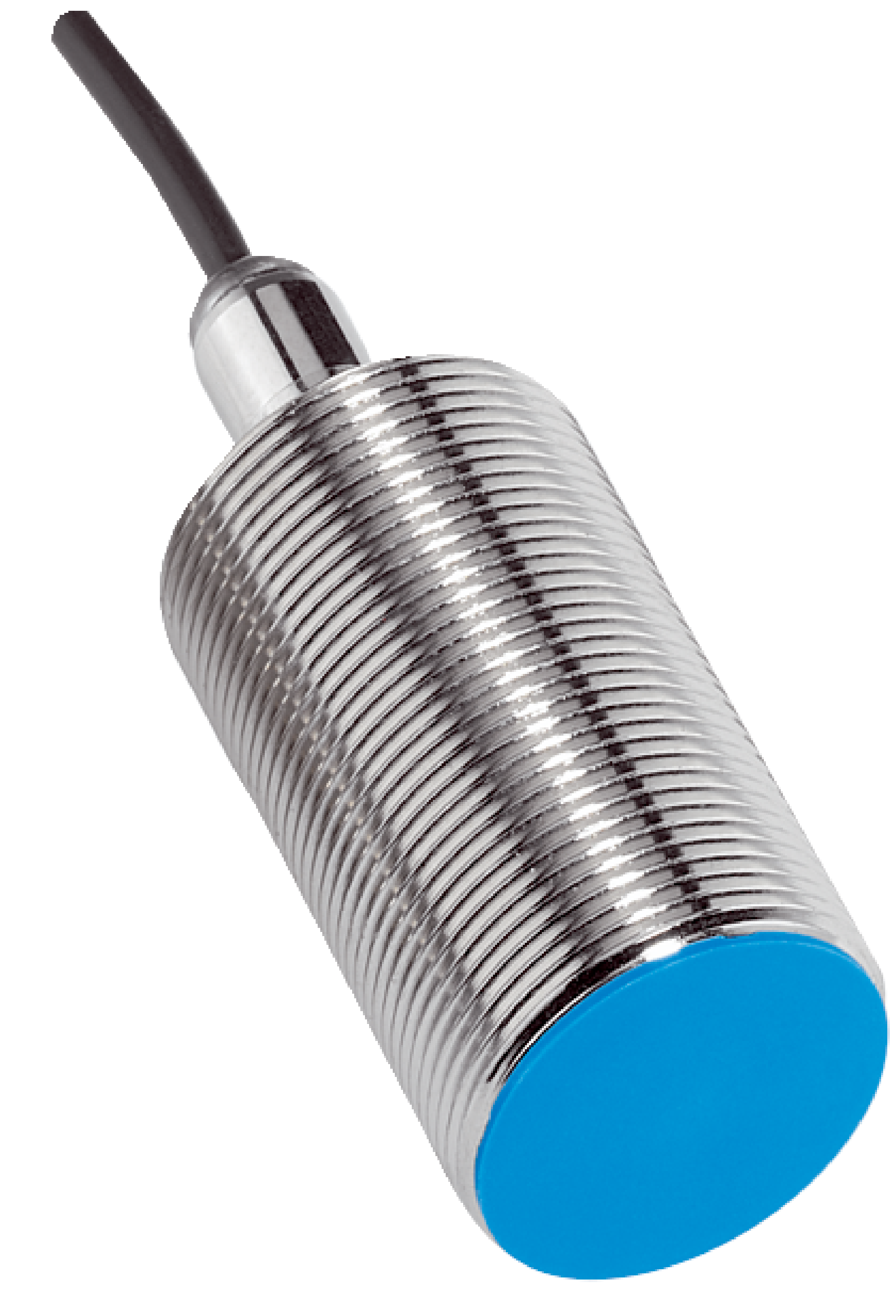

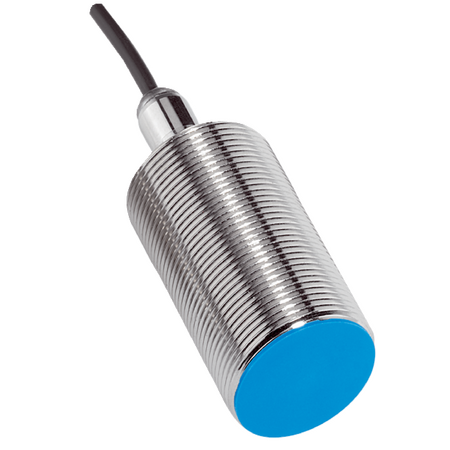

The SICK IME30-15BNOZW2S is a robust inductive proximity sensor with a 15 mm sensing range, designed for flush mounting in industrial automation applications. It features a durable brass housing, IP67 protection, and reliable NPN switching output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-15BNOZW2S | Inductive proximity sensors
Brand: SICK
SKU: 1041044
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, NPN Proximity Sensor, Flush Mount Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, 0.25 mm² conductor size, 3.9 mm diameter
- Switching output: NPN, normally closed
- Switching frequency: 500 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M30 x 1.5
- Sensing range Sn: 15 mm
- Safe sensing range Sa: 12.15 mm
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type with 15 mm sensing range
- NPN normally closed switching output with 3-wire DC wiring
- High switching frequency of 500 Hz
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
- Supplied with two brass, nickel-plated mounting nuts
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush mount sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-15BNOZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications.
