IME30-15BPSZU2KS44 | Inductive proximity sensors

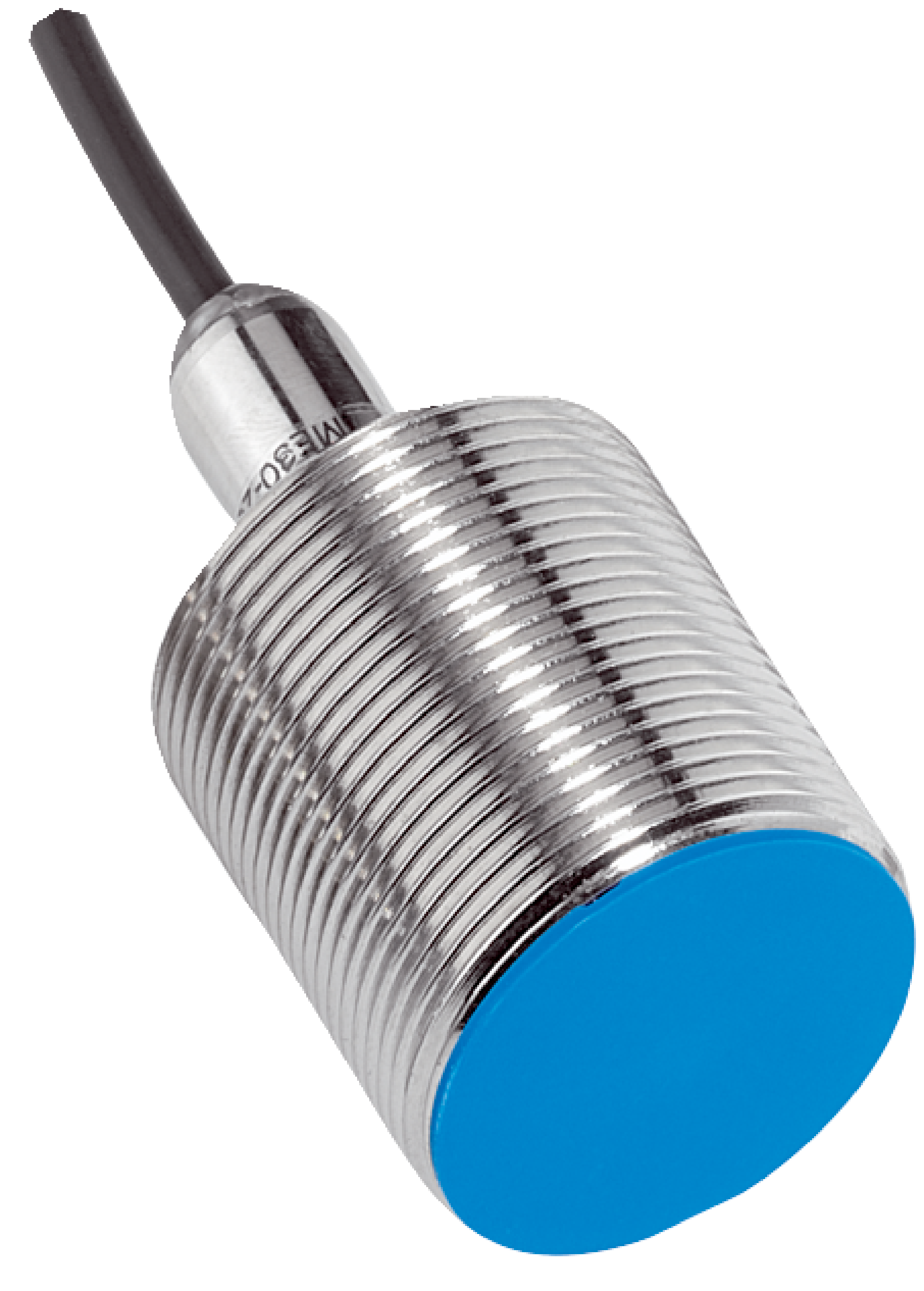

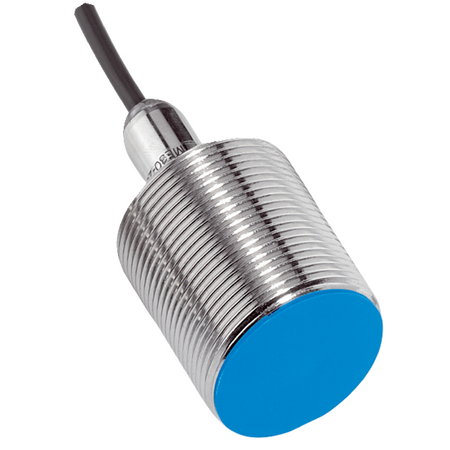

The SICK IME30-15BPSZU2KS44 is a short-body inductive proximity sensor with a 15 mm sensing range, designed for flush mounting in industrial automation applications. It features robust brass housing, IP67 protection, and reliable PNP switching output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-15BPSZU2KS44 | Inductive proximity sensors
Brand: SICK
SKU: 1135560
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Proximity Sensor 15mm, PNP Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 6.1 mm, conductor size 0.75 mm²
- Switching output: PNP normally open
- Switching frequency: 500 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 35 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.2 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Flush installation type
- Switching frequency up to 500 Hz
- PNP normally open switching output
- Cable connection with Deutsch DT04-3P-CE09 male connector, 3-pin, 2 m length
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Housing made of brass, nickel-plated with plastic PA 66 sensing face
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper flush mounting and electrical connection using the Deutsch connector.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Flush mounting in tight spaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient DC 3-wire electrical wiring minimizes power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-15BPSZU2KS44 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
