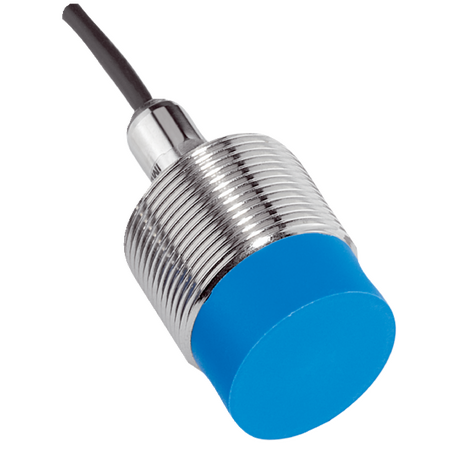

IME30-15NNSZW2K | Inductive proximity sensors
The SICK IME30-15NNSZW2K is a robust inductive proximity sensor with a short-body brass housing, 15 mm sensing range, and IP67 protection, ideal for industrial automation and object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-15NNSZW2K | Inductive proximity sensors
Brand: SICK
SKU: 1041023
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Switch, SICK Proximity Sensor 15mm
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 500 Hz
- Sensing range (Sn): 15 mm
- Safe sensing range (Sa): 12.15 mm
- Output type: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, diameter 3.9 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25°C to +75°C
- Protection rating: IP67
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.2 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type with 15 mm sensing range
- High switching frequency of 500 Hz
- NPN normally open (NO) switching output
- Cable connection, 3-wire, 2 meters length
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25°C to +75°C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable construction extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME30-15NNSZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
