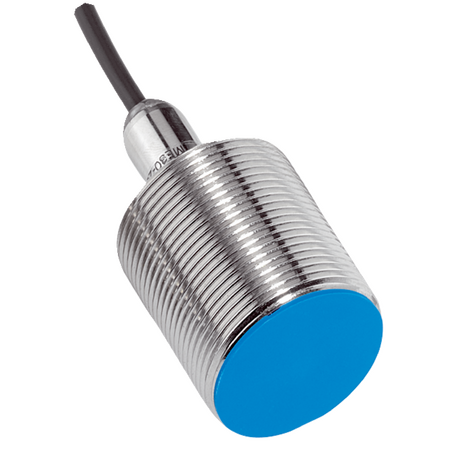

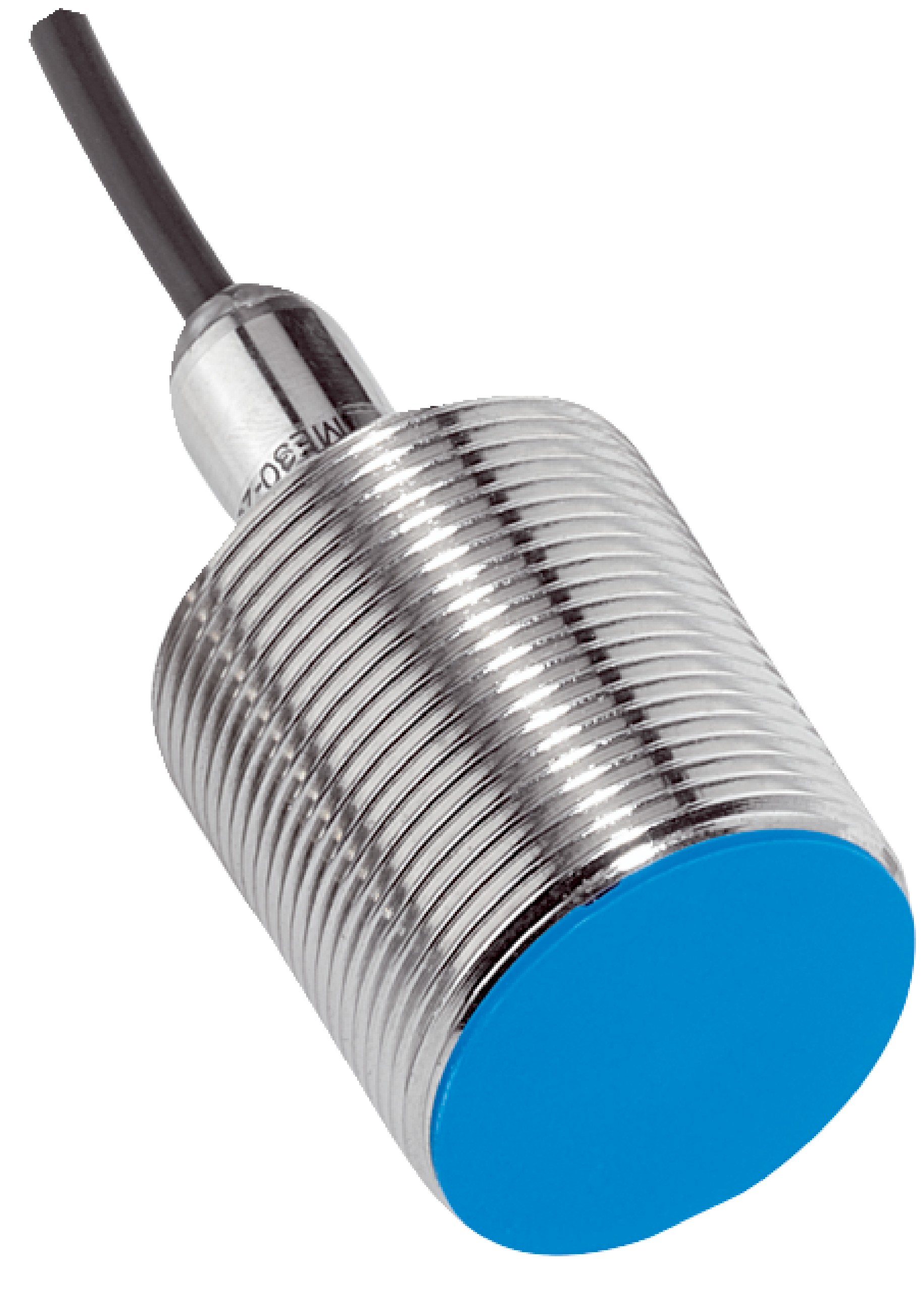

IME30-20BNOZW2K | Inductive proximity sensors
The SICK IME30-20BNOZW2K is a robust inductive proximity sensor with a 20 mm sensing range, designed for industrial automation applications requiring reliable metal object detection and high switching frequency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-20BNOZW2K | Inductive proximity sensors
Brand: SICK
SKU: 1071284
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Sensor, SICK Proximity Switch, Metal Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 60 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Switching output: NPN normally closed
- Connection type: Cable, 3-wire, 2 m
- Enclosure rating: IP67
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.15 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- 20 mm sensing range with 16.2 mm safe sensing range
- Quasi-flush installation type
- High switching frequency of 200 Hz
- NPN normally closed switching output
- Cable connection, 3-wire, 2 meters length
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature from -25°C to +75°C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation systems to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in conveyor systems
- Safety and control systems in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME30-20BNOZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
