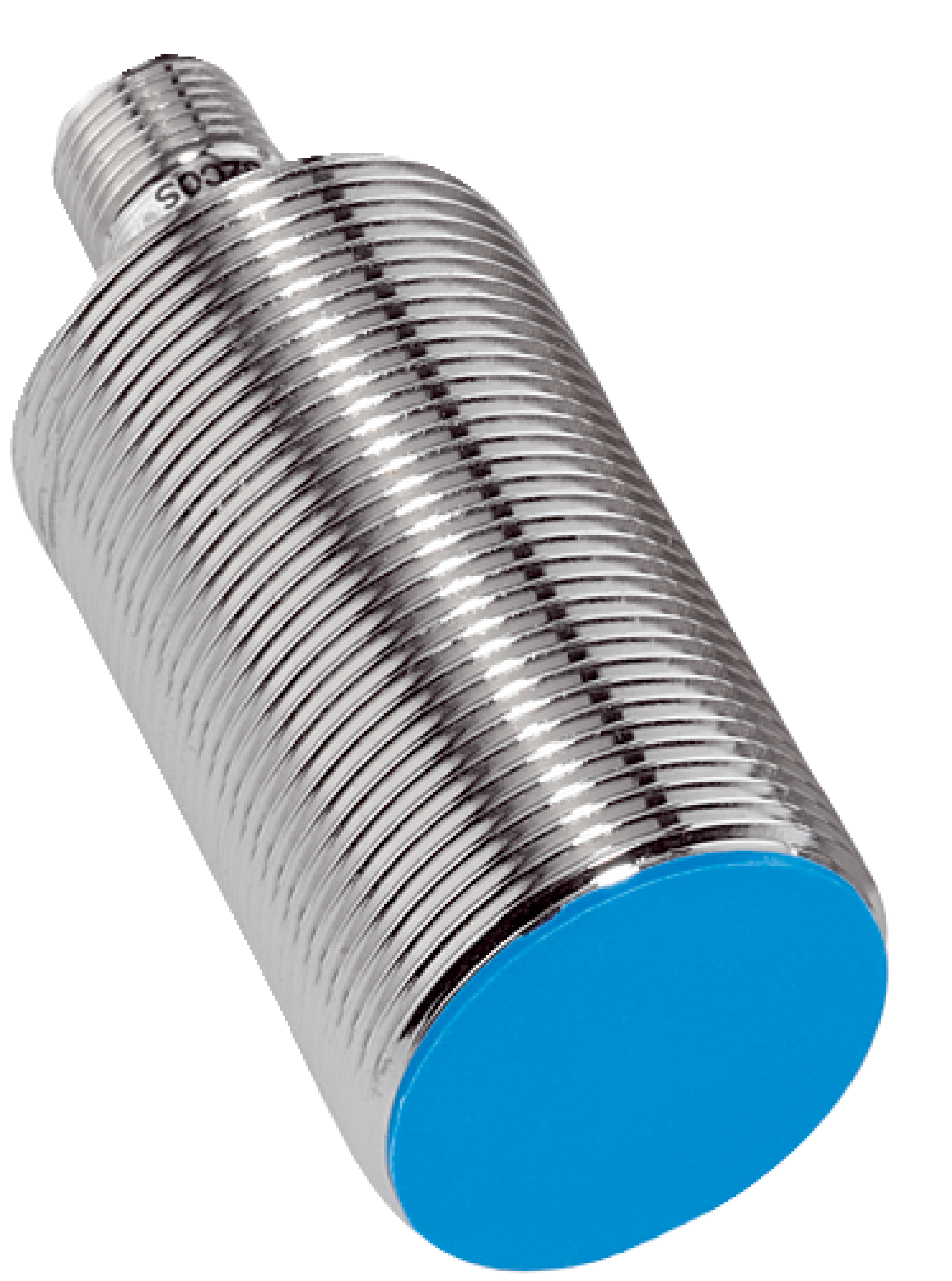

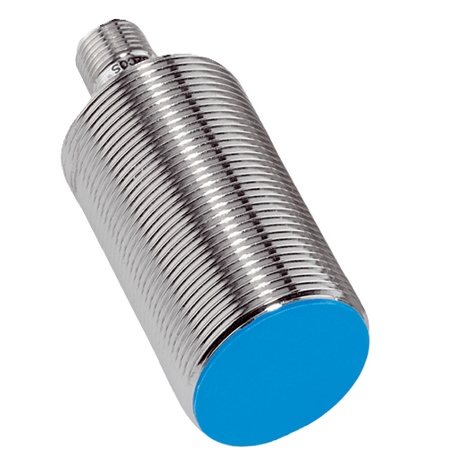

IME30-20BPOZC0S | Inductive proximity sensors
The SICK IME30-20BPOZC0S is an inductive proximity sensor with a 20 mm sensing range, designed for industrial automation applications requiring reliable metal object detection with robust IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-20BPOZC0S | Inductive proximity sensors
Brand: SICK
SKU: 1071294
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK IME30 Sensor, Metal Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 60 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Connection type: Male connector M12, 4-pin
- Output function: PNP normally closed
- Electrical wiring: DC 3-wire
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 54 mm
- Tightening torque max: ≤ 70 Nm
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Quasi-flush installation type
- Switching frequency up to 200 Hz
- PNP normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes two brass, nickel-plated mounting nuts
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable brass housing extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME30-20BPOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
