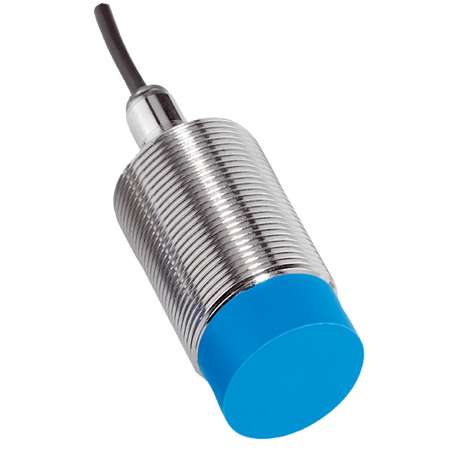

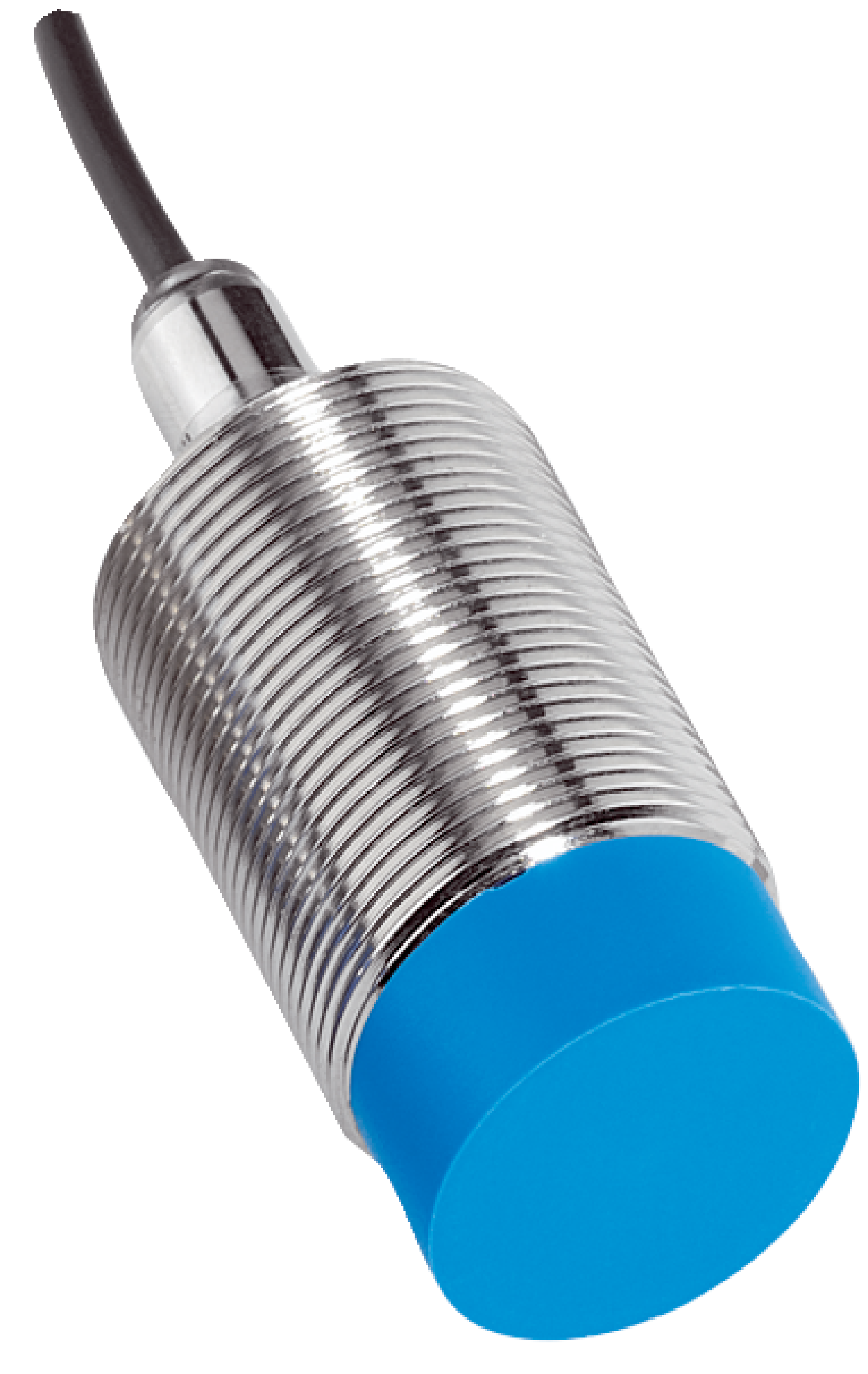

IME30-20NDOZY2S | Inductive proximity sensors
The SICK IME30-20NDOZY2S is a robust inductive proximity sensor with a 20 mm sensing range, designed for non-flush installation in industrial automation applications, featuring high switching frequency and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-20NDOZY2S | Inductive proximity sensors
Brand: SICK
SKU: 1068266
Alternatively Known As: Inductive Proximity Sensor M30, Non-flush Proximity Sensor, SICK IME30 Sensor, 20mm Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 500 Hz
- Sensing range (Sn): 20 mm
- Safe sensing range (Sa): 16.2 mm
- Output function: Normally closed (NC)
- Electrical wiring: DC 2-wire
- Enclosure rating: IP67
- Cable: 2 m, oil-resistant PVC, 0.25 mm² conductor size
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M30 x 1.5
- Thread length: 41 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with 20 mm sensing range
- High switching frequency of 500 Hz
- Oil-resistant 2 m cable with 2-wire DC connection
- IP67 rated enclosure for dust and water protection
- Short-circuit protection and power-up pulse ≤ 5 ms
- Shock and vibration resistant up to 30 g
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with inductive sensor wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Non-contact switching in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Oil-resistant cable extends product lifespan in harsh environments
- Energy-efficient DC 2-wire operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME30-20NDOZY2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
