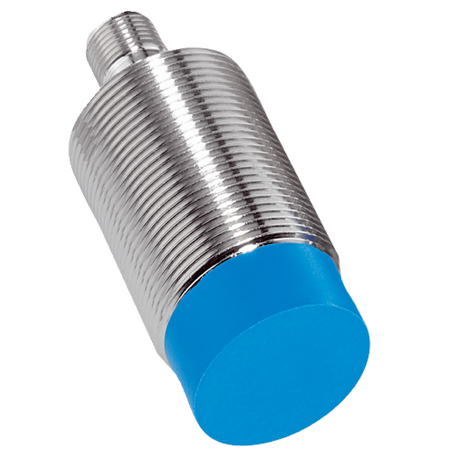

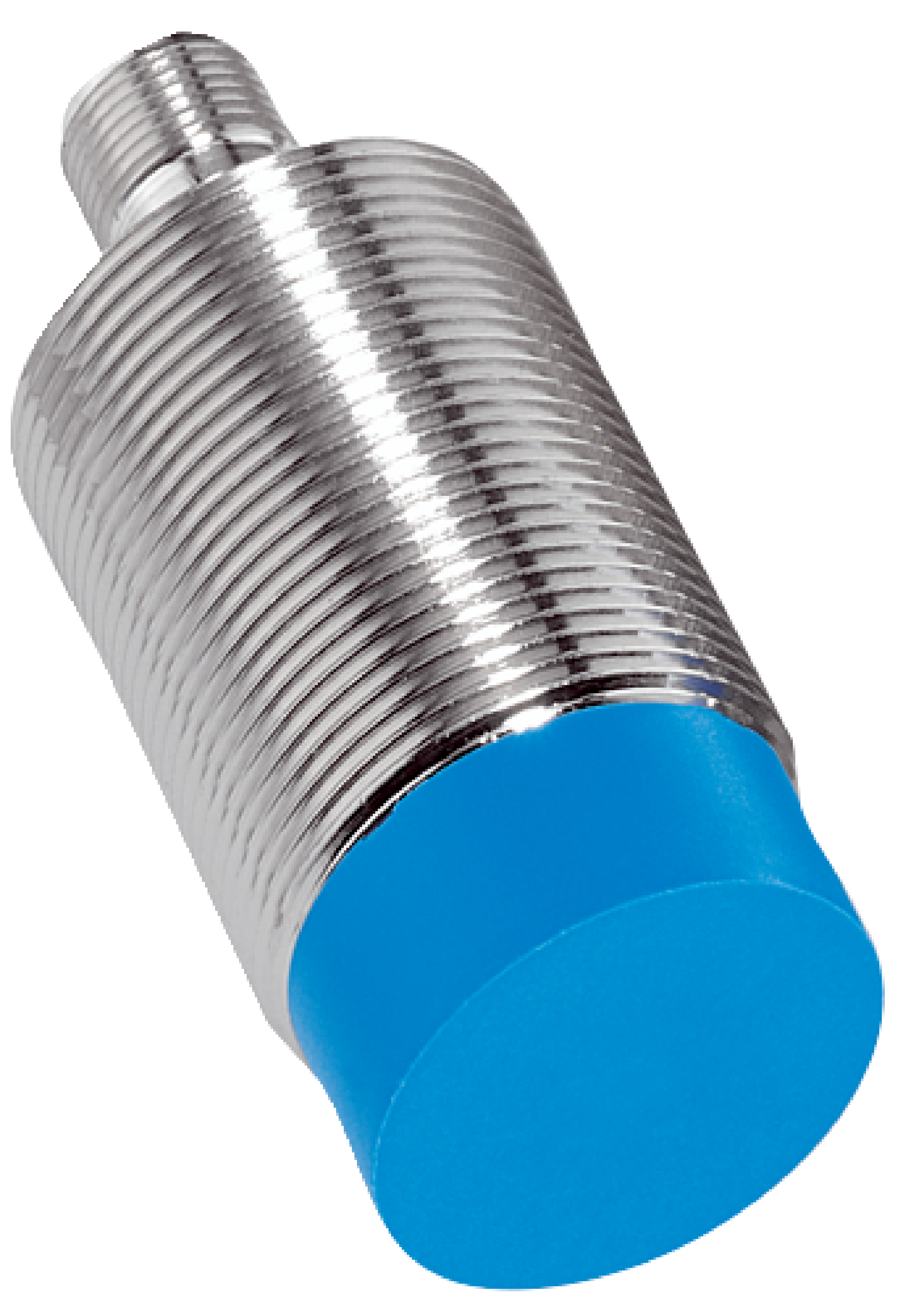

IME30-20NDSZC0S | Inductive proximity sensors
The SICK IME30-20NDSZC0S is an inductive proximity sensor featuring a robust M30 threaded brass housing, 20 mm sensing range, and IP67 protection, ideal for industrial automation and position sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-20NDSZC0S | Inductive proximity sensors
Brand: SICK
SKU: 1067184
Alternatively Known As: Inductive Proximity Sensor M30, Proximity Switch M30, SICK IME30 Sensor, Inductive Sensor 20mm Range
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 4 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 100 mA
- Off-state current: ≤ 0.8 mA
- Minimum load current: ≥ 3 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 41 mm
- Tightening torque max: ≤ 100 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M30 x 1.5 with 20 mm sensing range
- Non-flush installation type with IP67 enclosure rating
- Switching frequency up to 500 Hz
- Male connector M12, 4-pin connection
- DC 2-wire electrical wiring with NO output function
- Short-circuit protection and shock/vibration resistance
- Wide operating temperature range from -25°C to +75°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IME30-20NDSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
