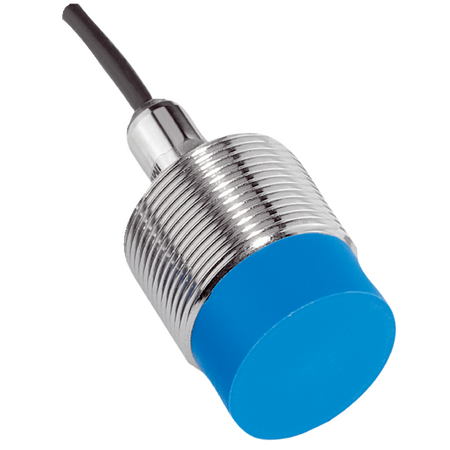

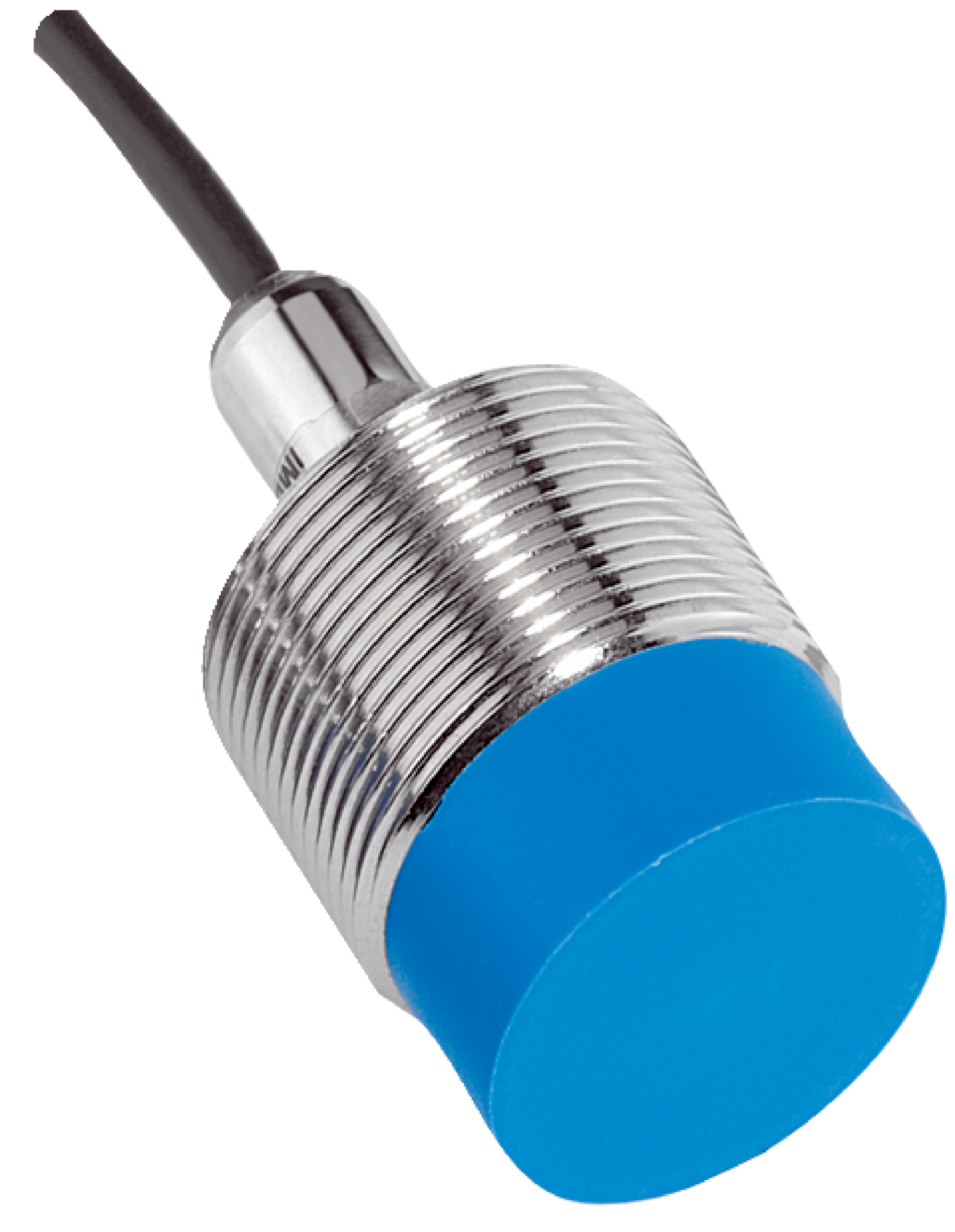

IME30-20NNSZW2K | Inductive proximity sensors
The SICK IME30-20NNSZW2K is a robust inductive proximity sensor featuring a short-body brass housing, 20 mm sensing range, and IP67 protection, ideal for industrial automation and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-20NNSZW2K | Inductive proximity sensors
Brand: SICK
SKU: 1041055
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Sensor, NPN Proximity Switch, Short Body Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: NPN, normally open (NO)
- Sensing range (Sn): 20 mm
- Safe sensing range (Sa): 16.2 mm
- Switching frequency: 500 Hz
- Connection type: 3-wire cable, 2 m length
- Enclosure rating: IP67
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Operating temperature: -25 °C to +75 °C
- Voltage drop: ≤ 2 V
- Short-circuit and power-up pulse protection included
- Shock resistance: 30 g, vibration resistance: 11 ms/10 Hz to 55 Hz
- Cable diameter: 3.9 mm, conductor size: 0.25 mm²
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.15 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type with 20 mm sensing range
- NPN normally open (NO) switching output
- High switching frequency of 500 Hz
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Includes two brass, nickel-plated mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in conveyor systems
- Non-contact switching in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable construction extends product lifecycle, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME30-20NNSZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
