IME30-20NPOZC0K | Inductive proximity sensors

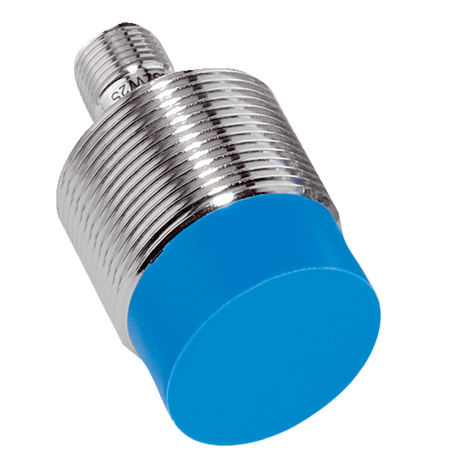

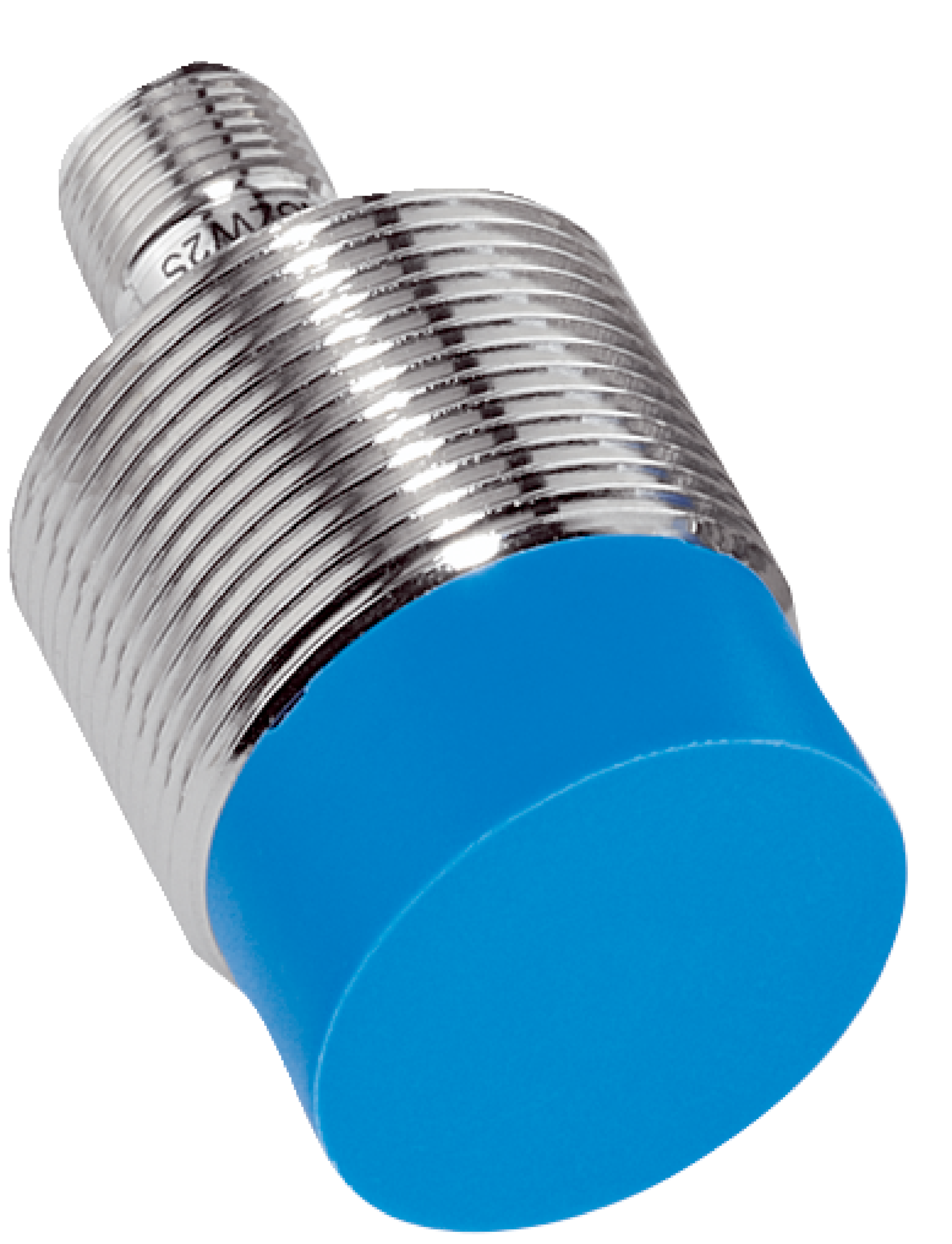

The SICK IME30-20NPOZC0K is a robust inductive proximity sensor featuring a short-body M30 threaded housing, 20 mm sensing range, and IP67 protection, ideal for industrial automation and position sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: IME30-20NPOZC0K | Inductive proximity sensors
Brand: SICK
SKU: 1041049
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Proximity Switch, M30 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Connection: Male M12 4-pin connector
- Output function: PNP normally closed
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 22 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.2 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type with 20 mm sensing range
- High switching frequency of 500 Hz
- PNP normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25 °C to +75 °C
- Brass nickel-plated housing with plastic PA 66 sensing face
- Includes two brass nickel-plated mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable construction extends product lifecycle, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-20NPOZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
