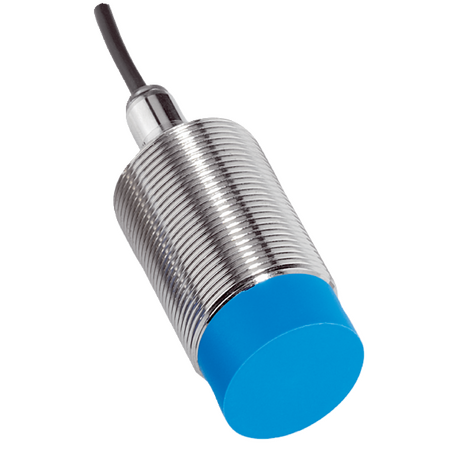

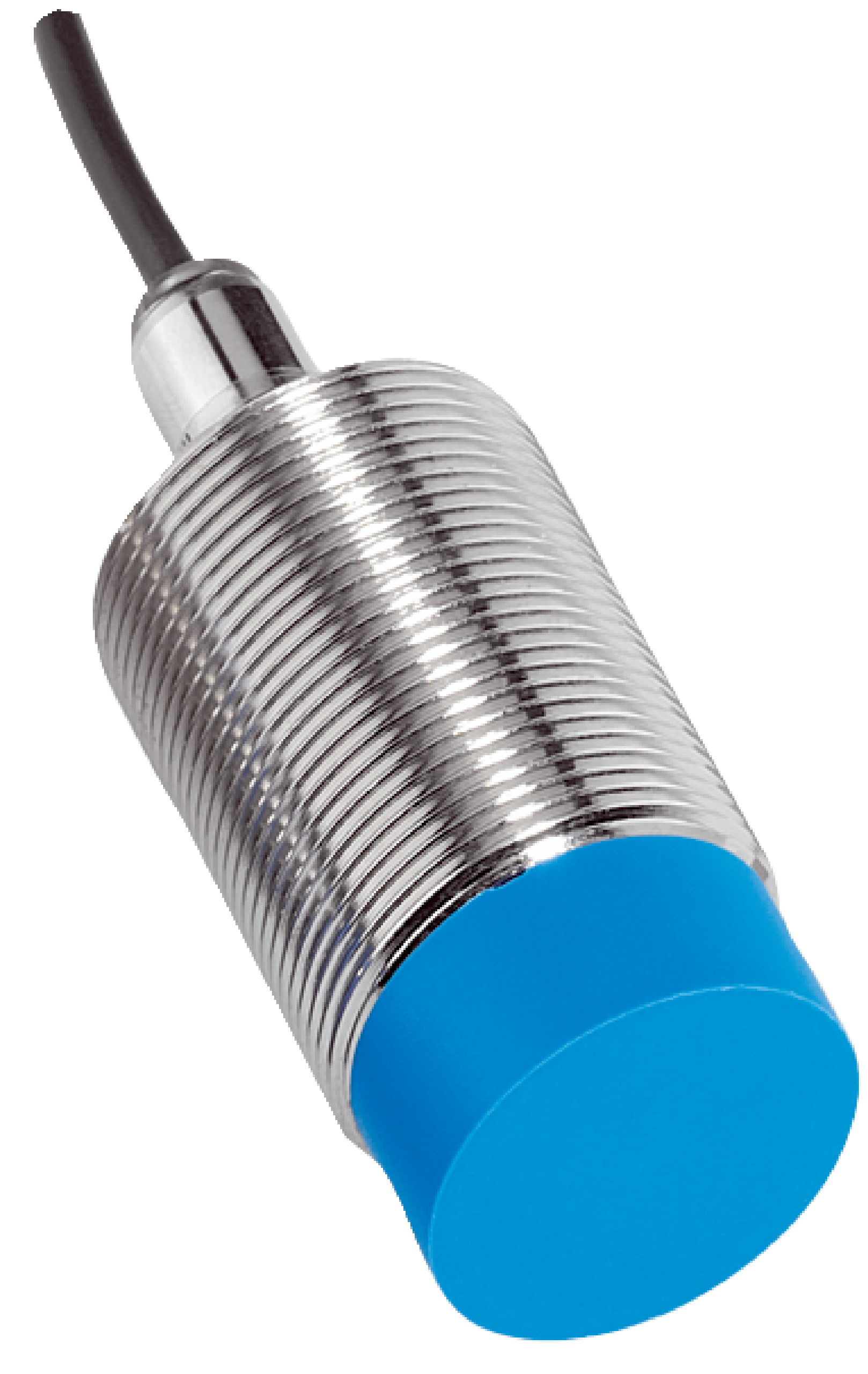

IME30-38NNSZW2S | Inductive proximity sensors

BRAND: SICK
SKU: 1071307
$190.90 List price: $239.90
+ −
30 Days Return Electricians Unlock Trade Access
The SICK IME30-38NNSZW2S is a robust inductive proximity sensor featuring a 38 mm sensing range, M30 threaded brass housing, and IP67 protection, ideal for industrial automation and position sensing applications.

Product Name/Title: IME30-38NNSZW2S | Inductive proximity sensors

Brand: SICK

SKU: 1071307

Alternatively Known As: Inductive Proximity Sensor M30, IME30 Sensor, SICK Proximity Switch, NPN Proximity Sensor

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Switching output: NPN, normally open
  • Switching frequency: 100 Hz
  • Connection type: 3-wire cable, 2 m length
  • Voltage drop: ≤ 2 V
  • Current: Continuous current ≤ 200 mA, no load current ≤ 10 mA
  • Hysteresis: 1% to 15%
  • Reproducibility: ≤ 5%
  • Temperature range: -25 °C to +75 °C
  • Housing material: Brass, nickel-plated
  • Sensing face material: Plastic PA 66
  • Enclosure rating: IP67
  • Shock resistance: 30 g, 11 ms
  • Cable diameter: Ø 3.9 mm
  • Short-circuit and power-up pulse protection included
  • Dimensions (H x L x W): 70mm x 70mm x 30mm
  • Weight: 0.2 kg
Key Features
  • Standard design housing with M30 x 1.5 thread size
  • Non-flush installation type with triple sensing range
  • Sensing range of 38 mm and safe sensing range of 30.78 mm
  • Switching frequency up to 100 Hz with NPN normally open output
  • IP67 rated enclosure for dust and water protection
  • Shock and vibration resistant up to 30 g
  • Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
  • Industrial automation for object detection
  • Position sensing in manufacturing lines
  • Non-contact switching in harsh environments
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Non-contact sensing reduces mechanical wear and maintenance waste
  • Durable IP67 housing extends product life reducing replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for details.

Available Now

The SICK IME30-38NNSZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
