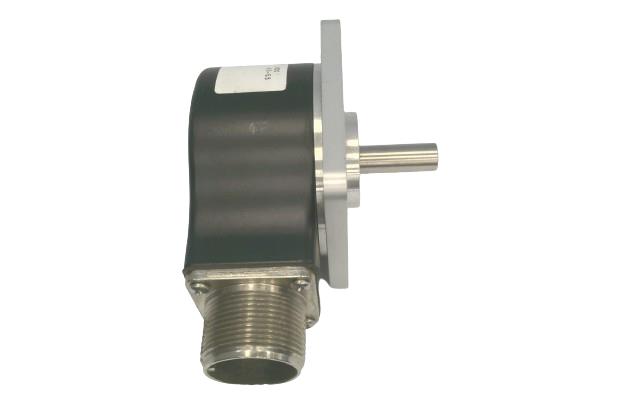

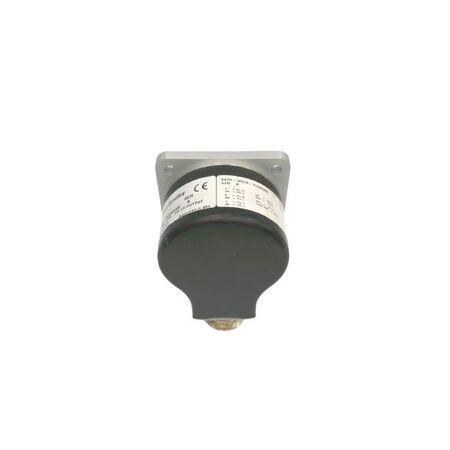

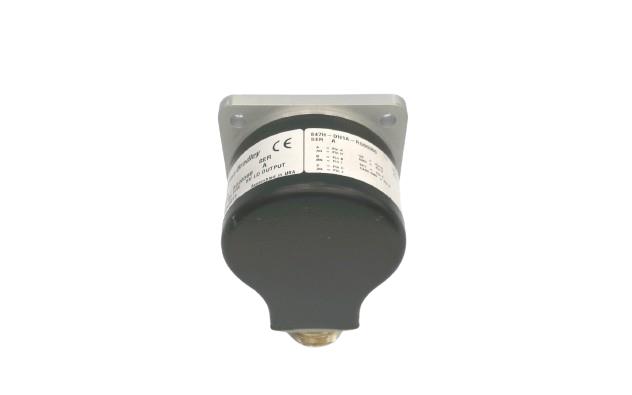

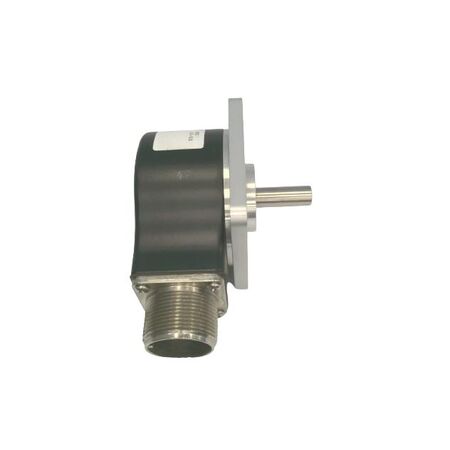

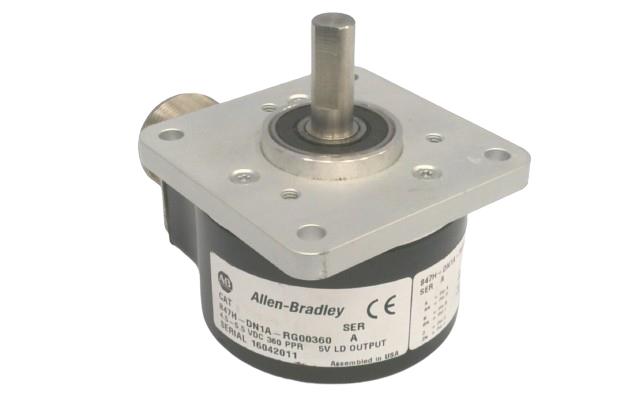

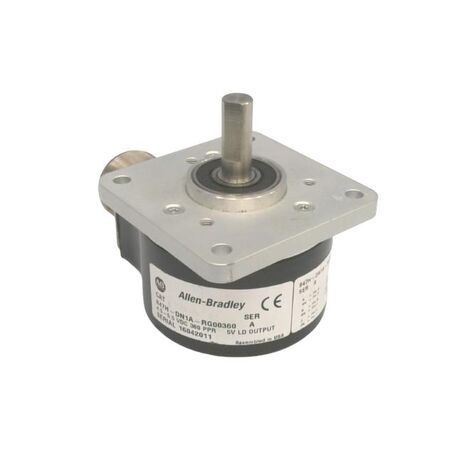

Product Name/Title: Allen-Bradley 847HDN1ARG00360 Incremental Encoder 2.5 Inch Diameter
Brand: Allen-Bradley
SKU: 847HDN1ARG00360
Alternatively Known As: Incremental Rotary Encoder, 2.5 Inch Shaft Encoder, Allen-Bradley 847HDN1ARG, 360 PPR Encoder
Technical Specifications
- Shaft Diameter: 3/8 inch with flat
- Flange Type: Standard square flange
- Supply Voltage: 4.5-5.5 VDC
- Output Type: 4.5-5.5 VDC line driver
- Connector: MS connector, 10 pin with mate
- Pulses Per Revolution: 360 PPR
- Exit Type: Radial
- Dimensions (H x L x W): 64mm x 64mm x 64mm
- Weight: 0.3 kg
Key Features
- 2.5 inch diameter solid shaft
- Standard square flange
- 3/8 inch diameter shaft with flat
- Radial exit with MS connector
- 10 pin connector with mate
- 360 pulses per revolution (PPR)
- 4.5-5.5 VDC supply and line driver output
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Rotational position sensing
- Motor feedback and speed monitoring
- Factory automation equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient motor control reducing energy consumption
- Durable design minimizes replacement frequency and waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 847HDN1ARG00360 Incremental Encoder is available for immediate purchase, ideal for industrial automation and control system applications.
