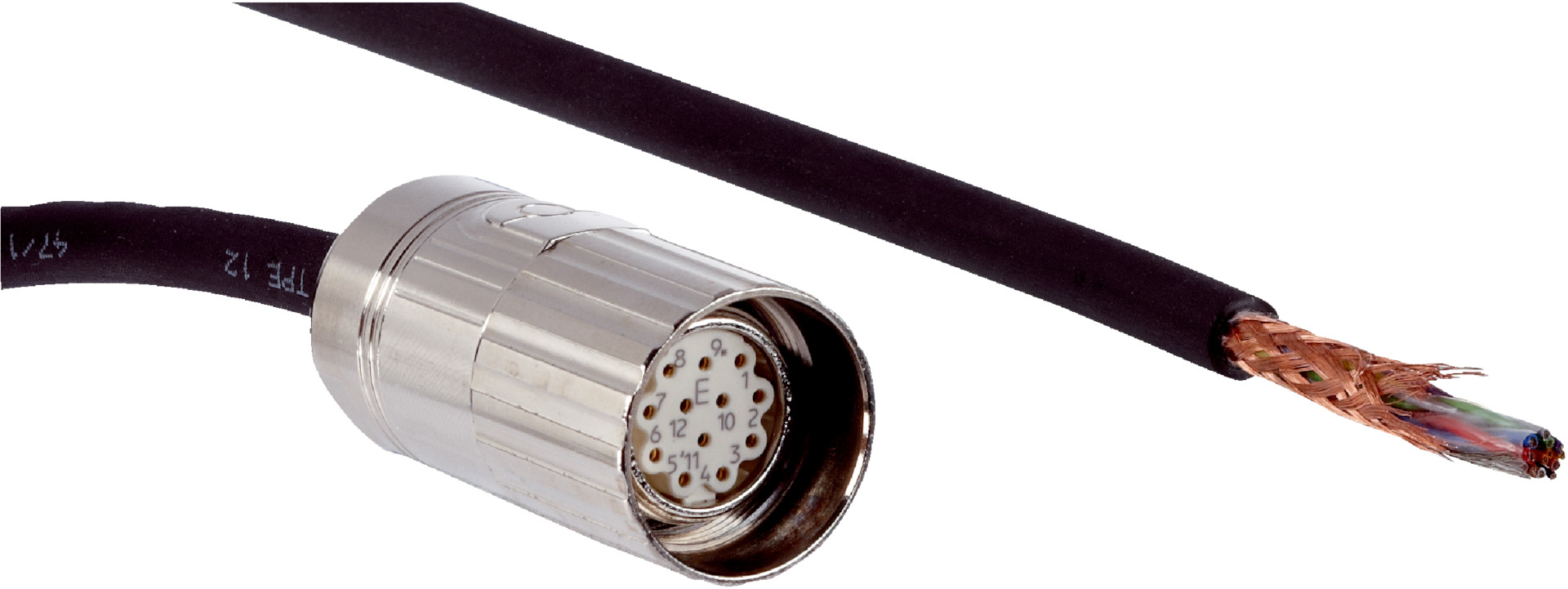

Incremental Encoder Cable M23 12-Pin | Shielded & Halogen-Free | IP66/IP67 Rated | by SICK
The Incremental Encoder Cable M23 12-Pin is designed for reliable signal transmission in industrial automation systems. Featuring a durable zinc die-cast locking nut and a 5 m halogen-free PUR cable, this shielded cable ensures signal integrity even in harsh environments. Ideal for machine control and monitoring, it supports a current loading of 7 A and complies with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M23, 12-pin, straight
- Connection type head B: Flying leads
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 5 m
- Cable type: 12-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 7.8 mm
- Conductor cross section: 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
- Shielding: Shielded
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 7.5 x cable diameter
- Reference voltage: ≤ 160 V
- Current loading: 7 A
- Signal type: Incremental
- Enclosure rating: IP66 / IP67
- Dimensions (H x L x W): 20mm x 5000mm x 20mm
- Weight: 0.3 kg
Key Features
- Female connector, M23, 12-pin, straight on head A
- Flying leads on head B for flexible connection
- Zinc die-cast, nickel-plated locking nut for durability
- 5 m PUR halogen-free cable with black jacket
- Shielded cable for signal integrity
- High enclosure rating of IP66/IP67 for harsh environments
- Supports current loading of 7 A
- Suitable for incremental signal type
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation systems
- Incremental encoder signal transmission
- Machine control and monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces environmental impact and improves safety in case of fire
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

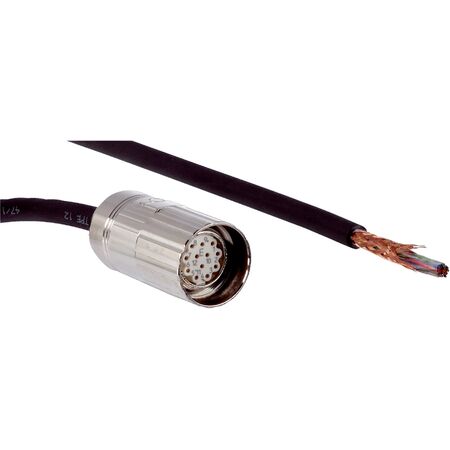

The SICK DOL-2312-G05MMA3 incremental encoder cable assembly is available for immediate purchase, ideal for industrial automation and machine control applications.
