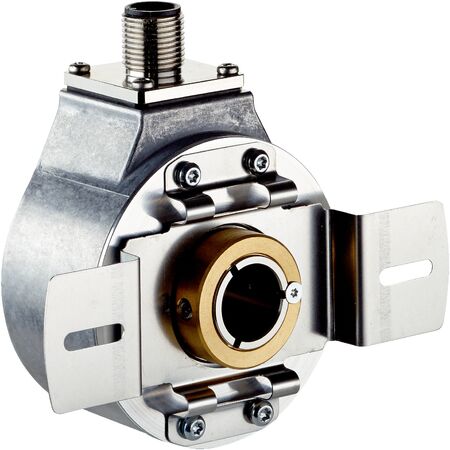

Incremental Encoder DBS60E-BHAC02000 | 2000 PPR | IP67 Rated | Fast Initialization | by SICK
The Incremental Encoder DBS60E-BHAC02000 offers high precision with 2000 pulses per revolution, making it ideal for industrial automation and robotics. Its robust blind hollow shaft design features a stainless steel shaft and an IP67 rated housing, ensuring durability in harsh environments. With a fast initialization time of under 5 ms, this encoder is perfect for applications requiring accurate position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DBS60E-BHAC02000 | 2000 PPR | IP67 Rated | Fast Initialization | by SICK
Brand: SICK
SKU: 1077729
Alternatively Known As: Incremental rotary encoder, SICK DBS60 encoder, 2000 PPR encoder, industrial position sensor
Technical Specifications
- Pulses per revolution: 2,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 50 mA without load
- Connection type: Male M12, 8-pin radial connector
- Supply voltage: 4.5 to 5.5 V
- Reference signal: 1, positioned at 90° electric, gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Blind hollow shaft with 15 mm diameter
- Flange: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start up torque: 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature: -20°C to +85°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Robust blind hollow shaft mechanical design with stainless steel shaft
- IP67 rated housing for protection against dust and water
- Fast initialization time under 5 ms
- Supports TTL / RS-422 incremental communication interface
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Low operating torque of 0.4 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BHAC02000 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
