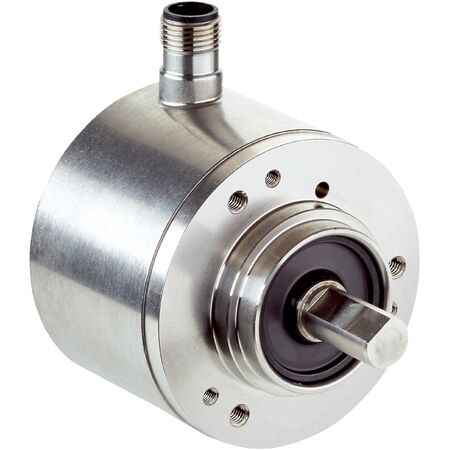

Incremental Encoder DFS60I-S4EC01000 1000 PPR IP67 Rated SICK
The Incremental Encoder DFS60I-S4EC01000 offers high precision with 1,000 pulses per revolution, making it ideal for industrial automation and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Incremental Encoder DFS60I-S4EC01000 | 1000 PPR | IP67 Rated | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1092527
Alternatively Known As: Incremental rotary encoder, rotary encoder 1000 PPR, industrial encoder, shaft encoder, position encoder
Technical Specifications
- Pulses per revolution: 1,000
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.5 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 1,000 pulses per revolution
- Solid shaft with stainless steel V2A housing and flange
- IP67 rated enclosure for dust and water protection
- 6-channel incremental HTL / Push pull communication interface
- Robust mechanical design with high permissible shaft loading
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -40°C to +100°C
- Low start-up and operating torque for minimal mechanical load
- Fast initialization time of 40 ms
- Complies with multiple international certifications including EU, UK, ACMA, and cULus
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring accurate feedback
- Machine tools and packaging machinery
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption of ≤ 0.5 W minimizes energy use
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S4EC01000 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
