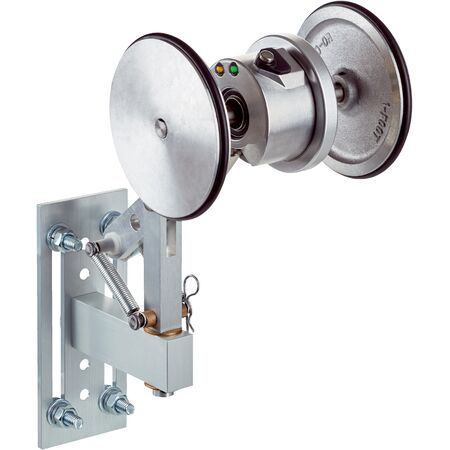

Incremental Encoder with Spring Arm 1 to 1800 Pulses Rev IP65 Rated Variant-2 SICK

BRAND: SICK
SKU: 1091749
$1,183.80 List price: $1,487.90
+ −
30 Days Return Electricians Unlock Trade Access
The Incremental Encoder with Spring Arm is designed for precise position and speed measurement in industrial automation.
Technical Specifications
  • Pulses per revolution: 1 to 1800
  • Resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent)
  • Measuring step: 90° electric/pulses per revolution with ±18° deviation
  • Duty cycle: 0.5 ± 5%
  • Initialization time: < 5 ms
  • Communication interface: Incremental TTL/HTL
  • Parameterising data via DIP switch
  • Operating power consumption (no load): 120 mA
  • Connection type: Male connector, M12, 8-pin
  • Output voltage and direction of rotation supported
  • Supply voltage: 4.75 V to 30 V
  • Load current max per channel: ≤ 30 mA
  • Maximum output frequency: 60 kHz
  • Reference signal: 1 at 180° electric, gated with A
  • Reverse polarity and short-circuit protection included
  • Measuring wheel circumference: 12 inches
  • Materials: Shaft - Stainless steel, Flange - Aluminum, Housing - Aluminum, Cable - PVC
  • Spring arm mechanism materials: Spring steel, Aluminum components
  • Start up torque: 0.5 Ncm, Operating torque: 0.4 Ncm
  • Operating speed: 1500 min⁻¹
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Maximum travel/deflection of spring arm: 40 mm
  • Recommended pretension: 20 mm
  • Max permissible working area for spring: ±10 mm
  • EMC compliant with EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65
  • Permissible relative humidity: 90% (no condensation)
  • Operating temperature range: -30°C to +70°C
  • Storage temperature range: -40°C to +75°C
  • Shock resistance: 100 g (EN 60068-2-27)
  • Vibration resistance: 30 g, 10 Hz to 2000 Hz (EN 60068-2-6)
  • Dimensions (H x L x W): 80mm x 150mm x 120mm
  • Weight: 0.9 kg
Key Features
  • High reliability with MTTFD of 275 years according to EN ISO 13849-1
  • Incremental communication interface with TTL/HTL output
  • Adjustable pulses per revolution from 1 to 1800
  • Robust aluminum housing and stainless steel shaft
  • IP65 rated enclosure for protection against dust and water
  • Operating temperature range from -30°C to +70°C
  • Short-circuit and reverse polarity protection
  • Spring arm design with under-belt flange mount and O-ring NBR70 measuring wheel
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician familiar with incremental encoders and industrial automation systems to ensure proper connection and calibration.
Applications
  • Industrial automation for precise position and speed measurement
  • Conveyor belt monitoring and control
  • Material handling systems
  • Machine tool feedback systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption of ≤1.25 W supports energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK DUV60E-D2KCHACA incremental encoder is available for immediate purchase, ideal for industrial automation and material handling applications.
