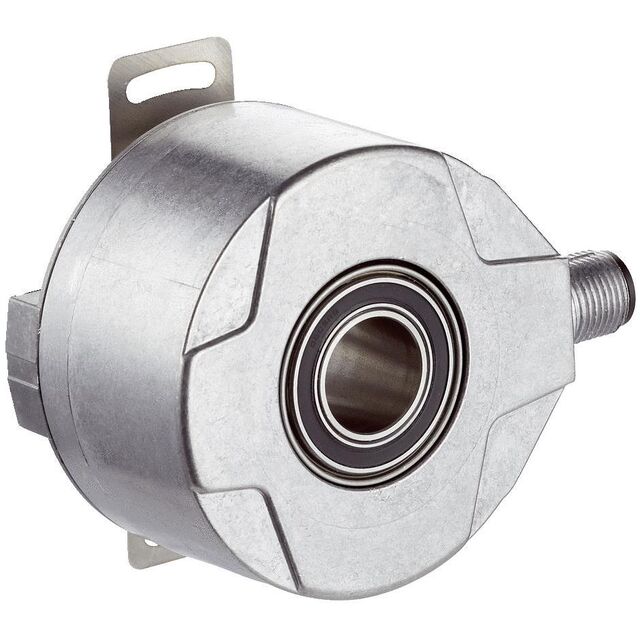

Incremental Rotary Encoder DFS60B-TGPC10000 10,000 Pulses Rev IP65 Rated SICK

BRAND: SICK
SKU: 1036918
$1,047.30 List price: $1,316.30
+ −
30 Days Return Electricians Unlock Trade Access
The Incremental Rotary Encoder DFS60B-TGPC10000 delivers high precision with 10,000 pulses per revolution

Alternatively Known As: Incremental rotary encoder, high resolution encoder, DFS60B encoder, SICK rotary encoder

Technical Specifications
  • Pulses per revolution: 10,000
  • Measuring step: 90° electric/pulses per revolution
  • Measuring step deviation: ±0.01°
  • Error limits: ±0.05°
  • Communication interface: Incremental TTL/HTL, 6-channel
  • Output frequency: ≤ 600 kHz
  • Load current: ≤ 30 mA
  • Power consumption: ≤ 0.7 W (without load)
  • Connection type: Male connector, M12, 8-pin, radial
  • Supply voltage: 4.5 to 32 V
  • Mechanical design: Through hollow shaft, 14 mm shaft diameter
  • Materials: Stainless steel shaft, aluminum flange and die-cast aluminum housing
  • Start up torque: 0.8 Ncm at +20°C
  • Operating torque: 0.6 Ncm at +20°C
  • Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
  • Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: ≤ 6,000 min⁻¹
  • Moment of inertia of rotor: 40 gcm²
  • Bearing lifetime: 3.6 x 10^10 revolutions
  • Angular acceleration: ≤ 500,000 rad/s²
  • EMC compliance: EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65 (housing and shaft side)
  • Operating temperature range: -40°C to +100°C
  • Storage temperature range: -40°C to +100°C
  • Shock resistance: 70 g, 6 ms
  • Vibration resistance: 30 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 100mm x 60mm
  • Weight: 0.2 kg
Key Features
  • High resolution with 10,000 pulses per revolution
  • Robust through hollow shaft mechanical design
  • IP65 rated housing for protection against dust and water
  • Operating temperature range from -40°C to +100°C
  • 6-channel incremental TTL/HTL communication interface
  • Programmable and configurable output settings
  • Reverse polarity and short-circuit protection
  • Low power consumption of ≤ 0.7 W
  • High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and configuration.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement and positioning
  • Conveyor systems and material handling
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption contributes to energy efficiency in industrial systems
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK DFS60B-TGPC10000 incremental encoder is available for immediate purchase, ideal for precision industrial automation and motion control applications.
