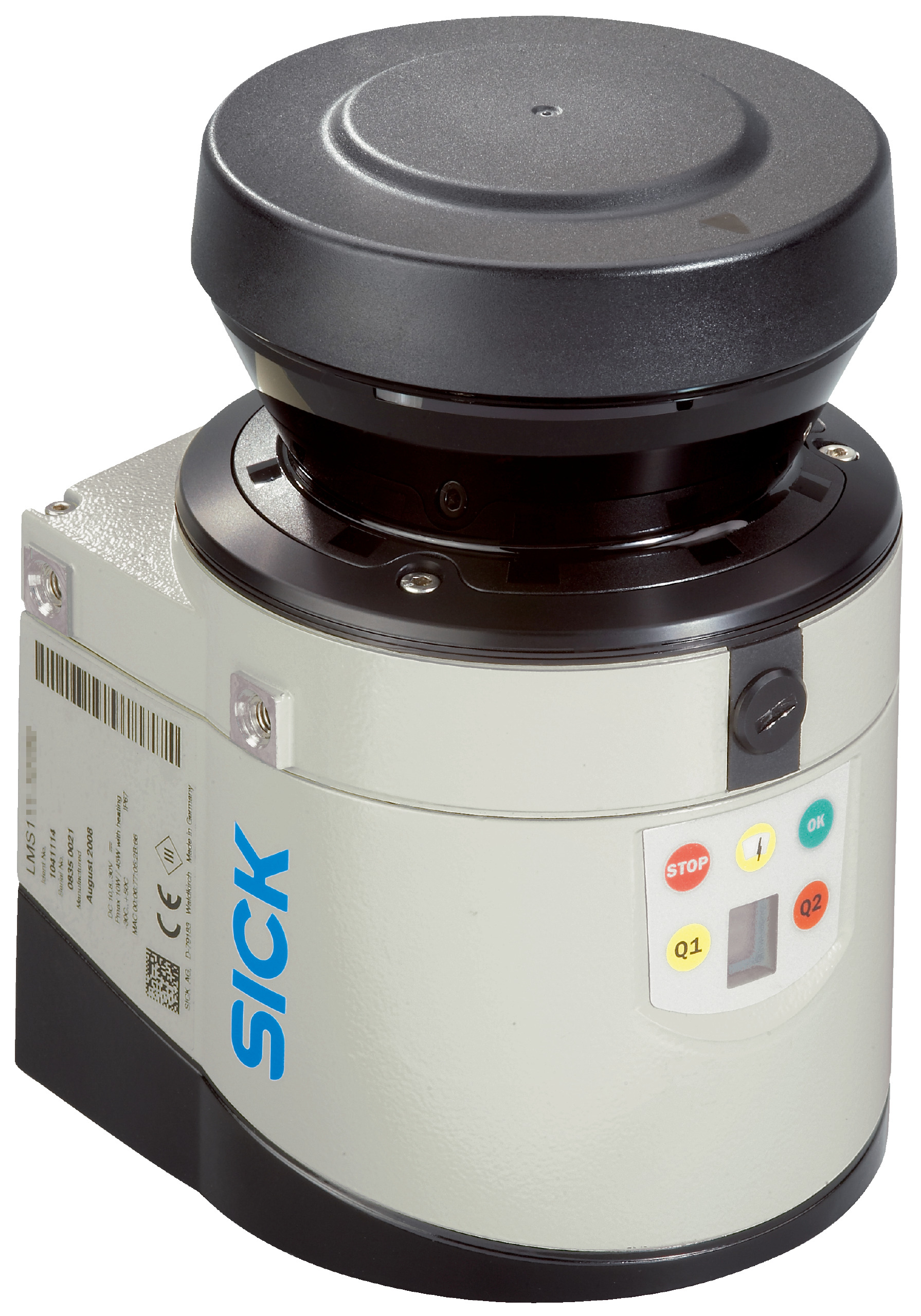

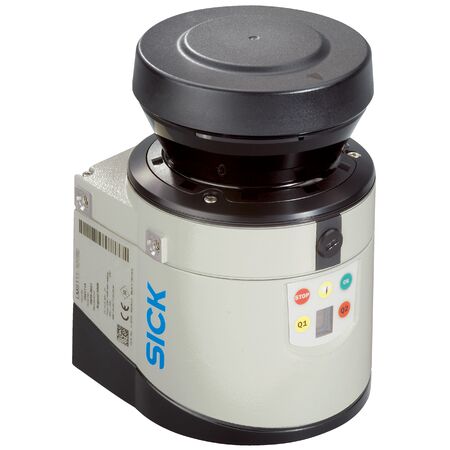

Indoor Laser Scanner SICK LMS101-10000 Infrared Light Source IP65 Rated SICK
The Indoor Laser Scanner SICK LMS101-10000 features an infrared light source with a 905 nm wavelength and a wide horizontal aperture angle of 270°.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 0.25° or 0.5° selectable
- Scanning frequency: 25 Hz or 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 20 m
- Amount of evaluated echoes: 2
- Fog correction: Yes
- Connection type: 1 x system plug with screw terminal block
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: 22 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Data transmission rate Ethernet: 10/100 MBit/s
- Data transmission rate Serial: 9.6 kBaud to 115.2 kBaud
- Digital inputs: 2 digital and 2 encoder inputs
- Digital outputs: 3
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270°
- High scanning frequency options: 25 Hz and 50 Hz
- Angular resolution selectable between 0.25° and 0.5°
- Working range from 0.5 m up to 20 m
- Fog correction capability for enhanced performance in adverse conditions
- IP65 rated enclosure for dust and water protection
- Multiple interfaces including Ethernet (TCP/IP), RS-232 serial, and CAN
- 7-segment display with LEDs for device status and warnings
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical standards to ensure compliance and optimal performance.
Applications
- Indoor environment scanning and object detection
- Field evaluation and automation systems
- Industrial safety and monitoring applications
Standards & Compliance
- Complies with AS/NZS 61010-1 for safety requirements of electrical equipment
Environmental Benefits
- Low power consumption of 22 W reduces energy usage
- Long MTBF (>100 years) minimizes waste and replacement frequency
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK LMS101-10000 Indoor Infrared Laser Scanner is available for immediate purchase, ideal for industrial indoor scanning and safety applications.
