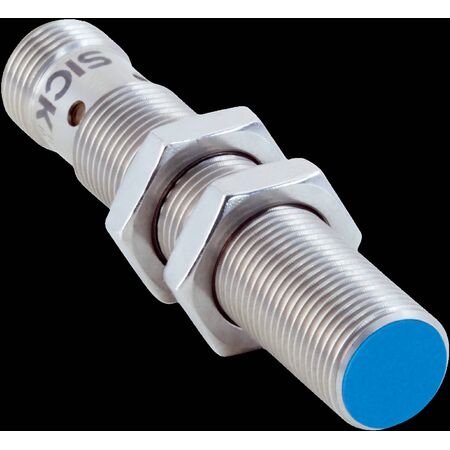

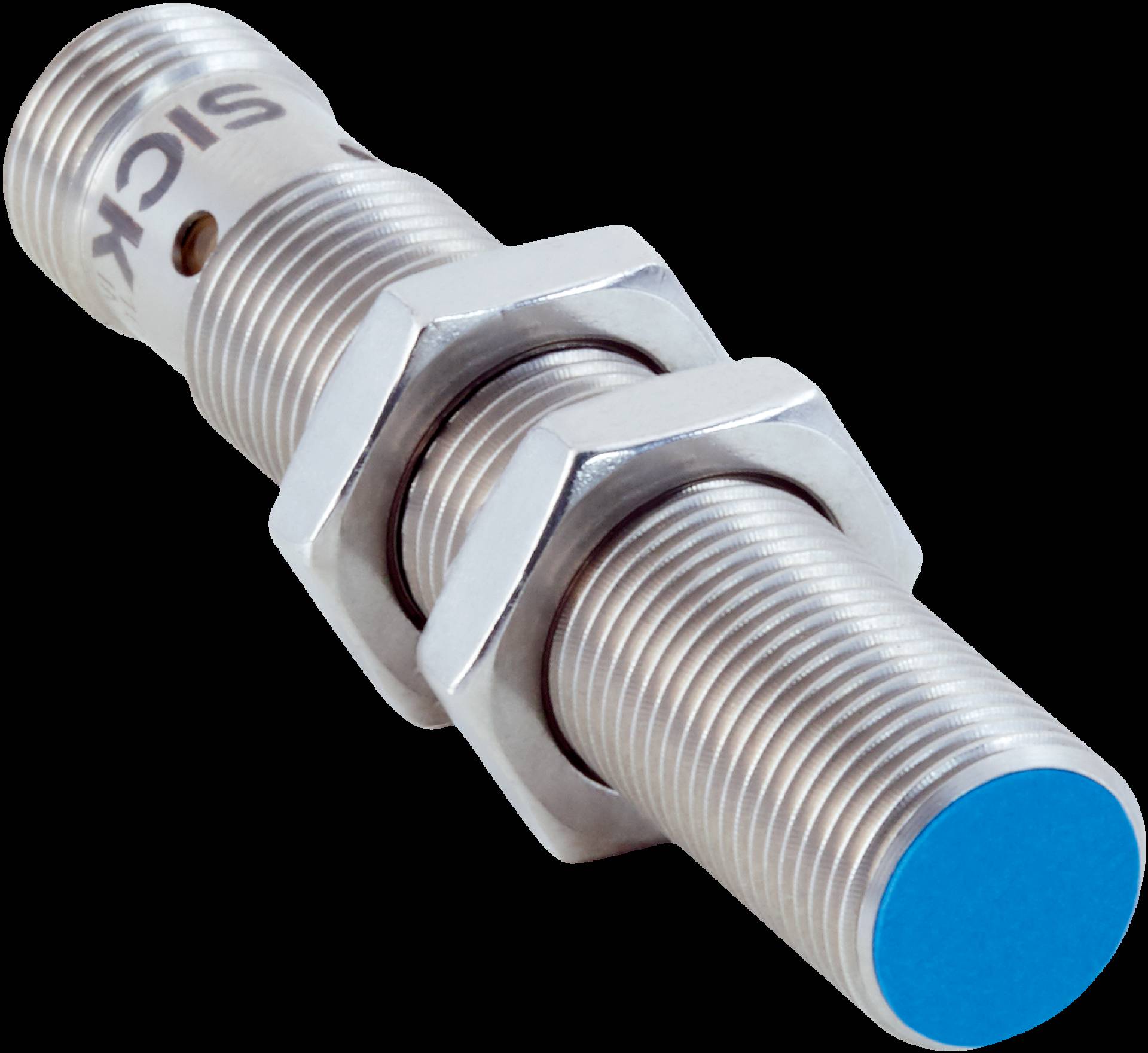

Inductive Proximity Sensor IMX | 9mm Sensing Range | IP68 Rated | Compact Design | by SICK
The IMX Inductive Proximity Sensor is designed for industrial automation, featuring a 9mm sensing range and IP68 rating for protection against dust and water. Ideal for detecting metal objects in harsh environments, this sensor offers four times the sensing range of conventional models, ensuring high performance and reliability in space-critical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor IMX | 9mm Sensing Range | IP68 Rated | Compact Design | by SICK
Brand: SICK
SKU: 1107437
Alternatively Known As: Inductive Proximity Sensor, IMX Proximity Sensor, Long Range Inductive Sensor, Industrial Proximity Sensor
Technical Specifications
- Thread size: M12 x 1
- Sensing range Sn: 9 mm (example model)
- Installation type: quasi-flush
- Switching output: PNP
- Output function: Normally Open (NO)
- Connection type: male connector M12, 4-pin
- Housing length: 68.1 mm
- Thread length: 51.1 mm
- Enclosure rating: IP68
- Operating temperature range: –25 °C to +75 °C
- Housing material: Nickel-plated brass with plastic sensing face
- Dimensions (H x L x W): 12mm x 68.1mm x 12mm
- Weight: 0.1 kg
Key Features
- Four times the sensing range of conventional inductive sensors
- Sensing ranges up to 50 mm for enhanced process performance
- Compact design saves installation space in tight areas
- Rugged, durable construction reduces mechanical damage
- Nickel-plated brass housing with plastic sensing face
- Visual adjustment indicator for easy setup
- Resistant to oils and cooling lubricants
- IP68 rated enclosure for protection against dust and water
- Operating temperature range from –25 °C to +75 °C
- 4-fold sensing ranges available from 4 mm to 50 mm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for detecting metal objects at greater distances
- Space-critical installations requiring compact sensor designs
- Harsh environments with exposure to oils and cooling lubricants
- Process control requiring high plant availability and reduced downtime
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing reduces power consumption
- Resistant to harsh environments, minimizing environmental contamination
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against defects.
Available Now
The SICK IMX Inductive Proximity Sensor is available for immediate purchase, ideal for industrial detection applications requiring extended sensing ranges and robust performance.
