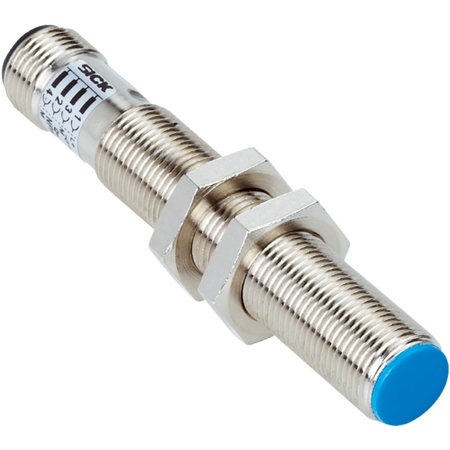

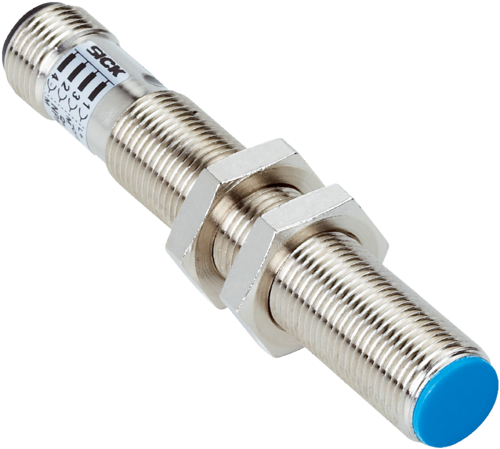

Inductive Proximity Sensor M12 PNP Output IP67 Rated Variant-2 SICK
The Inductive Proximity Sensor M12 is designed for reliable object detection in industrial automation
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M12, PNP Proximity Switch, Non-flush Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 2% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic
- Thread size: M12 x 1
- Switching frequency: 2,000 Hz
- Ambient operating temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 12mm x 65mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M12 x 1 thread size with 12 mm diameter
- Non-flush installation type
- Sensing range of 4 mm
- Switching frequency up to 2,000 Hz
- PNP switching output with NO function
- Male connector M12, 4-pin connection
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM12-04NPS-ZC1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
