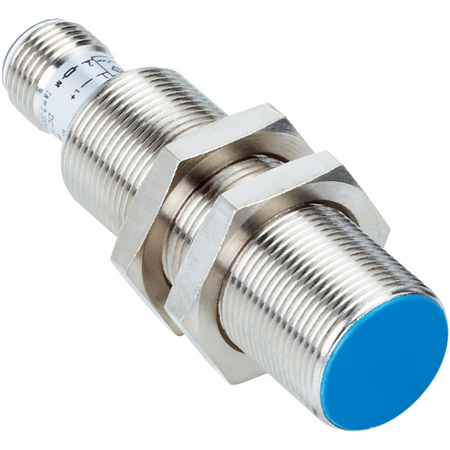

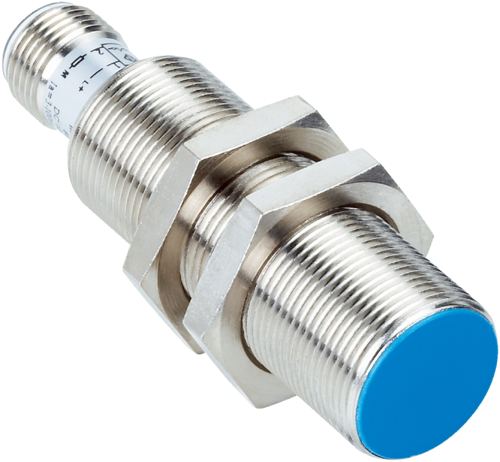

Inductive Proximity Sensor M18 IP67 Rated Brass Housing SICK

BRAND: SICK
SKU: 6011999
$175.50 List price: $220.60
+ −
30 Days Return Electricians Unlock Trade Access
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation

Alternatively Known As: Inductive Proximity Sensor M18, IM18 Proximity Sensor, SICK Proximity Switch

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Ripple: ≤ 10%
  • Voltage drop: ≤ 1 V
  • Time delay before availability: ≤ 100 ms
  • Hysteresis: 2% to 10%
  • Reproducibility: ≤ 2%
  • Temperature drift of sensing range: ± 10%
  • Continuous current Ia: ≤ 400 mA
  • Switching output: PNP, normally open (NO)
  • Connection type: Male connector M12, 4-pin
  • Housing material: Brass, nickel-plated
  • Sensing face material: Plastic
  • Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
  • Ambient operating temperature: -25 °C to +70 °C
  • Tightening torque max: ≤ 30 Nm
  • Enclosure rating: IP67
  • Dimensions (H x L x W): 64mm x 64mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Standard design housing with brass, nickel-plated material
  • Thread size M18 x 1 with 8 mm sensing range
  • Non-flush installation type
  • Switching frequency of 600 Hz
  • PNP switching output with NO function
  • DC 3-wire electrical wiring
  • IP67 rated enclosure for dust and water protection
  • Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
  • Short-circuit and power-up pulse protection included
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper setup and safety compliance.
Applications
  • Industrial automation for object detection
  • Position sensing in manufacturing lines
  • Non-contact switching in machinery
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Energy-efficient operation with low voltage DC supply
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for details.

Available Now

The SICK IM18-08NPS-ZC1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
