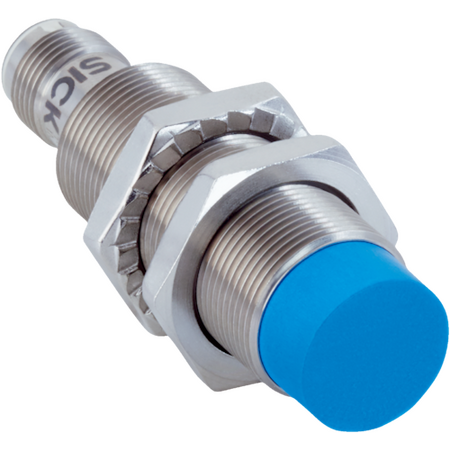

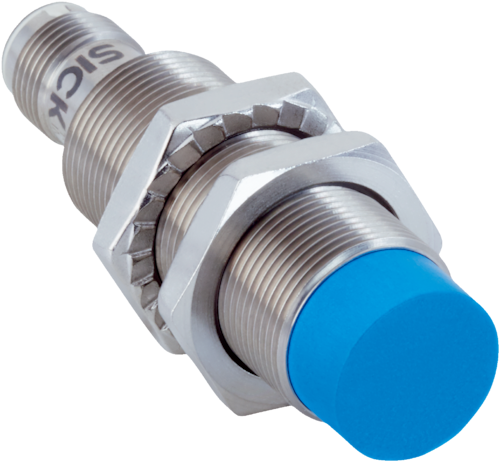

Inductive Proximity Sensor M18 Non-Flush Design IP68 & IP69K Rated SICK

BRAND: SICK
SKU: 1074372
$148.50 List price: $186.60
+ −
30 Days Return Electricians Unlock Trade Access
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation.

Alternatively Known As: Inductive Proximity Sensor M18, Non-Flush Inductive Sensor, SICK Proximity Sensor IMB18

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Ripple: ≤ 10%
  • Voltage drop: ≤ 2 V
  • Hysteresis: 3% to 20%
  • Reproducibility: ≤ 2%
  • Temperature drift of sensing range: ± 10%
  • Continuous current Ia: ≤ 200 mA
  • No load current: ≤ 10 mA
  • Short-circuit and power-up pulse protection included
  • Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
  • Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
  • Ambient operating temperature: -40 °C to +100 °C
  • Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
  • Sensing face material: Plastic, LCP
  • Protection class: III
  • Connection type: Male connector M12, 4-pin
  • Switching output: NPN complementary
  • Dimensions (H x L x W): 65mm x 65mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Standard design housing with M18 x 1 thread size
  • Non-flush installation type
  • Sensing range of 12 mm with safe sensing range of 9.72 mm
  • Switching frequency up to 1,000 Hz
  • NPN complementary switching output with DC 4-wire electrical wiring
  • Enclosure rating IP68 and IP69K for high protection
  • Resistant against coolant lubricants and temperature resistant
  • Shock and vibration resistant with high durability
  • Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure correct wiring and mounting according to industrial safety standards.
Applications
  • Industrial automation for object detection
  • Mobile machines operating in zones with coolants and lubricants
  • Harsh environments requiring resistant sensors
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable stainless steel housing reduces replacement frequency and waste
  • High resistance to harsh environments minimizes environmental contamination risks
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK IMB18-12NNPVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
