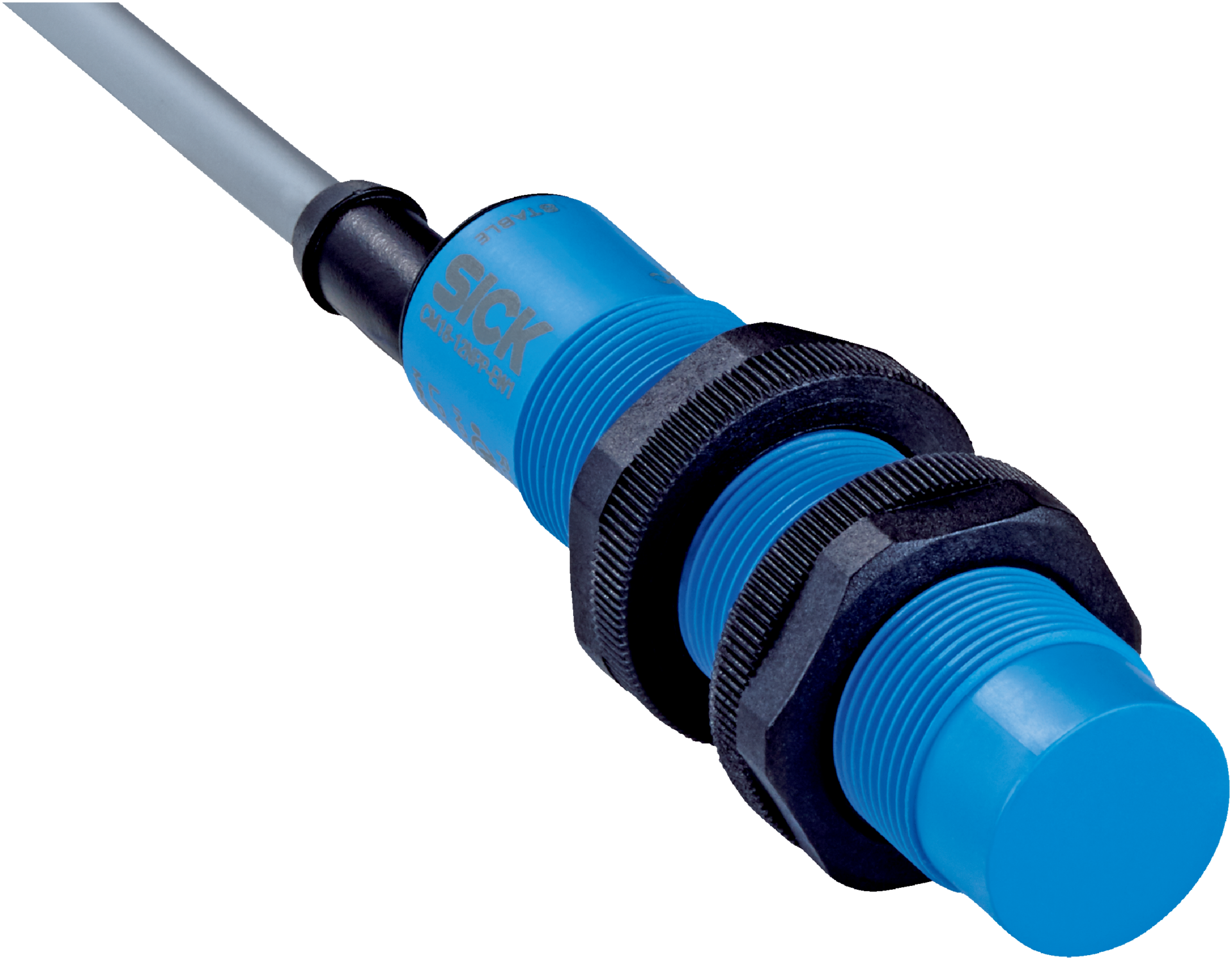

Inductive Proximity Sensor M18 Non-Flush Installation PNP Output SICK

BRAND: SICK
SKU: 6058148
$315.40 List price: $396.40
+ −
30 Days Return Electricians Unlock Trade Access
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation

Alternatively Known As: Inductive Proximity Sensor M18, Non-flush Inductive Sensor, PNP Inductive Sensor, SICK Proximity Switch

Technical Specifications
  • Supply voltage: 10 V DC to 36 V DC
  • Current consumption: 12 mA
  • Voltage drop: ≤ 2.5 V DC
  • Switching frequency: 50 Hz
  • Output: PNP, complementary, wire configurable
  • Cable: 4-wire, 2 m PVC, conductor size 0.34 mm², diameter 5.2 mm
  • Enclosure rating: IP67, IP68, IP69K
  • Hysteresis: 3% to 20%
  • Reproducibility: ≤ 5%
  • Temperature drift: ±10%
  • Time delay before availability: ≤ 200 ms
  • Shock and vibration resistance: EN 60068 compliant
  • Housing material: Plastic, PBT
  • Thread size: M18 x 1
  • Tightening torque max: ≤ 2.6 Nm
  • Dimensions (H x L x W): 86mm x 18mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Non-flush installation type with M18 x 1 metric thread housing
  • Sensing range up to 12 mm with safe sensing range of 9.18 mm
  • PNP switching output with complementary wire configurable function
  • High switching frequency of 50 Hz
  • Robust plastic PBT housing with IP67, IP68, and IP69K protection ratings
  • Cable connection type with 4-wire, 2 m PVC cable
  • Short-circuit and power-up pulse protection included
  • Wide ambient operating temperature range from -30°C to +85°C
  • Shock and vibration resistance compliant with EN 60068
  • Adjustment potentiometer for sensitivity with 11 turns
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
  • Industrial automation for object detection
  • Manufacturing process control
  • Conveyor systems
  • Robotics and machinery safety
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Energy-efficient operation minimizes power consumption
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

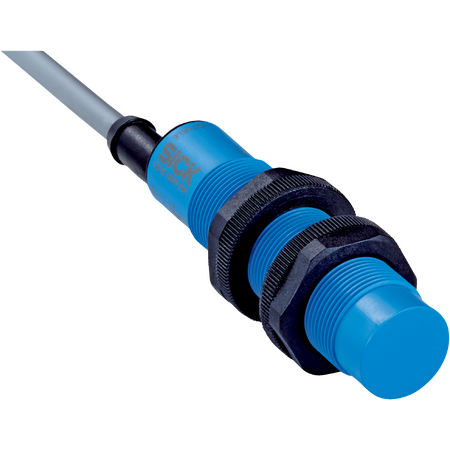

The SICK CM18-12NPP-EW1 inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications.
