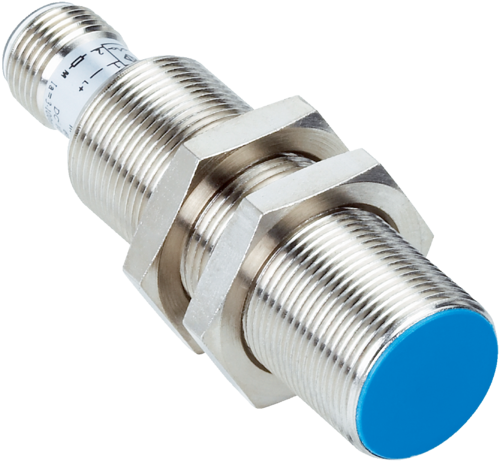

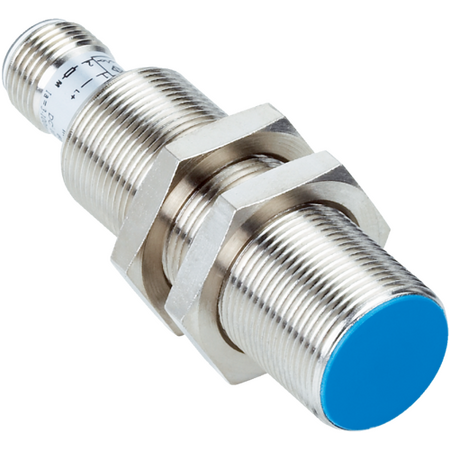

Inductive Proximity Sensor M18 PNP Output IP67 Enclosure SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M18, PNP Proximity Sensor, Flush Mount Proximity Sensor, SICK IM18 Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 2% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 400 mA
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Brass, Nickel-plated
- Sensing face material: Plastic
- Thread size: M18 x 1
- Switching frequency: 600 Hz
- Tightening torque max: ≤ 30 Nm
- Dimensions (H x L x W): 18mm x 64mm x 18mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M18 x 1 thread size
- Flush installation type
- Sensing range of 5 mm
- Switching frequency of 600 Hz
- PNP switching output with NO function
- Male connector M12, 4-pin connection
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Machine safety and positioning
- Conveyor systems and robotics
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel-plated brass housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage and current consumption
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IM18-05BPS-ZC1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
