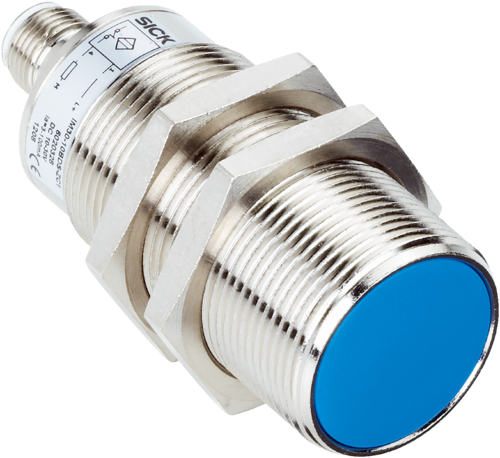

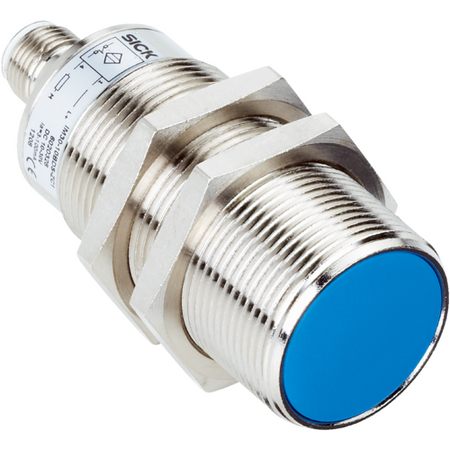

Inductive Proximity Sensor M30 15mm Sensing Range IP67 Rated Variant-2 (200 Hz Switching Frequency) SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M30, IM30 Proximity Switch, SICK Proximity Sensor 15mm, Non-flush Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open (NO)
- Switching frequency: 200 Hz
- Connection type: Male connector M12, 4-pin
- Voltage drop: ≤ 1 V
- Ripple: ≤ 10%
- Hysteresis: 2% to 10%
- Reproducibility: ≤ 2%
- Ambient operating temperature: -25°C to +70°C
- Continuous current: ≤ 400 mA
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Tightening torque max: ≤ 60 Nm
- Time delay before availability: ≤ 100 ms
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 30mm x 76mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M30 x 1.5 with non-flush installation type
- Sensing range of 15 mm with PNP normally open output
- High switching frequency of 200 Hz
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and monitoring in production processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Durable IP67 housing minimizes replacement frequency, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM30-15NPS-ZC1 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
