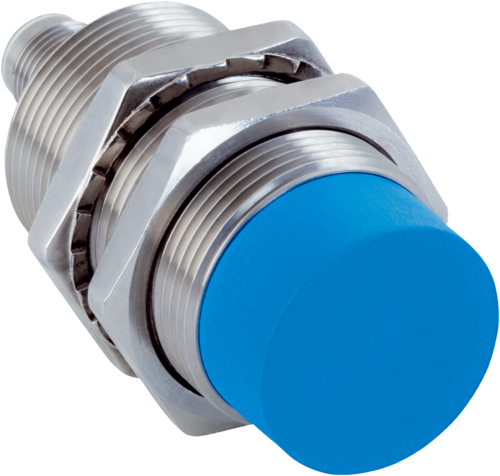

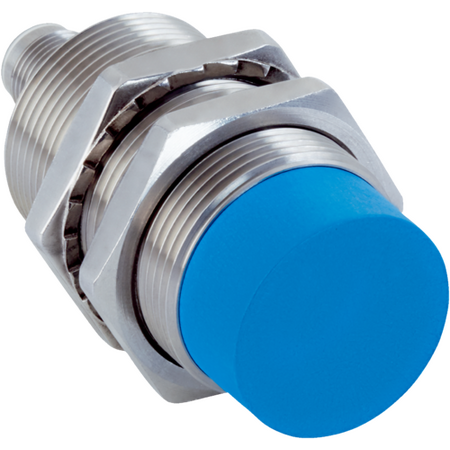

Inductive Proximity Sensor M30 PNP 20mm Sensing Range IP68 & IP69K Rated (500Hz Switching Frequency) SICK
The Inductive Proximity Sensor M30 PNP is designed for reliable object detection in industrial automation and mobile machinery applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M30 PNP, Non-flush Proximity Sensor, IO-Link Proximity Sensor, Stainless Steel Proximity Sensor
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M30 x 1.5
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Installation type: Non-flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP complementary
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Power-up pulse duration: ≤ 5 ms
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Sensing face material: Plastic, LCP
- Housing length: 70 mm
- Thread length: 40 mm
- Tightening torque max: Typically 100 Nm
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with 20 mm sensing range
- High switching frequency of 500 Hz
- PNP complementary switching output with DC 4-wire electrical wiring
- Robust stainless steel V2A housing resistant to coolant lubricants and temperature extremes
- Enclosure rating IP68 and IP69K for protection against dust and high-pressure water jets
- Shock and vibration resistant with high mechanical durability
- Short-circuit and power-up pulse protection included
- Communication interface IO-Link V1.0 with COM2 (38.4 kBaud)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting, ensuring correct torque and environmental sealing.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolant lubricants and difficult application conditions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB30-20NPPVC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
