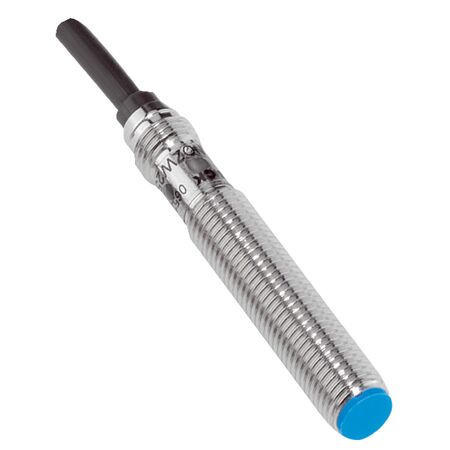

Inductive Proximity Sensor M8 IP67 Rated 1.5mm Sensing Range (4000 Hz Switching Frequency) SICK
Inductive proximity sensor M8 designed for industrial automation, featuring a 1.5mm sensing range and a high switching frequency of 4000 Hz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | IP67 Rated | 1.5mm Sensing Range | 4000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1043555
Alternatively Known As: Inductive Proximity Sensor M8, IME08 Proximity Sensor, SICK Proximity Sensor, M8 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm, conductor size 0.25 mm²
- Switching output: NPN, normally open (NO)
- Switching frequency: 4,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 52mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design with M8 x 1 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- NPN normally open (NO) switching output
- Cable connection, 3-wire, 5 m length
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush mounting sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-1B5NSZW5S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
