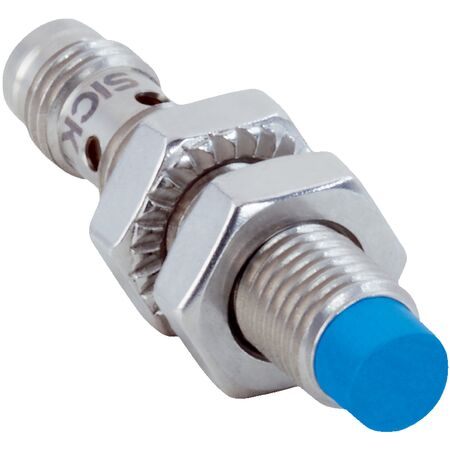

Inductive Proximity Sensor Short-Body M8 IP68 & IP69K Rated SICK
Inductive proximity sensor designed for industrial automation, featuring a short-body M8 design with a sensing range of 4 mm and an IP68 IP69K enclosure rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor | Short-Body M8 | IP68 & IP69K Rated | 4mm Sensing Range | by SICK
Brand: SICK
SKU: 1072696
Alternatively Known As: M8 Inductive Proximity Sensor, Short Body Proximity Sensor, NPN Inductive Sensor, IP68 Proximity Sensor
Technical Specifications
- Housing: Short-body, M8 x 1 thread size, Ø 8 mm diameter
- Sensing range Sn: 4 mm, Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 4000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -40°C to +100°C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Protection class: III
- Dimensions (H x L x W): 40mm x 40mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body M8 x 1 threaded housing
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- High switching frequency of 4000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- Connector M8, 3-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of plastic LCP
- Wide ambient operating temperature range from -40°C to +100°C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes sensor failure and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB08-04NNOVT0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
