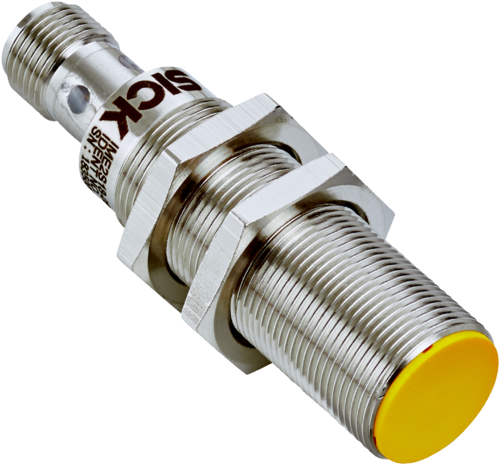

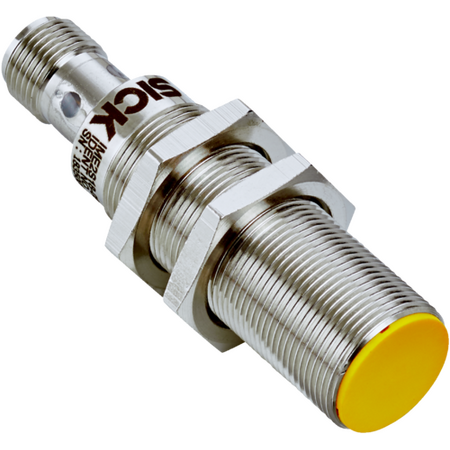

Inductive Safety Sensor M18 2 Safe Outputs IP67 Rated SICK

BRAND: SICK
SKU: 1091949
$321.30 List price: $403.90
+ −
30 Days Return Electricians Unlock Trade Access
The Inductive Safety Sensor M18 is designed for industrial automation safety monitoring, featuring 2 safe outputs and a sensing range of 5 mm.

Alternatively Known As: Inductive Safety Sensor M18, SICK IME2S18 Safety Sensor, M18 Inductive Proximity Sensor

Technical Specifications
  • Sensor principle: Inductive
  • Number of safe outputs: 2
  • Sensing range Sn: 5 mm
  • Assured switch on distance Sao: 4 mm
  • Assured switch off distance Sar: 7.5 mm
  • Actuation frequency: ≤ 100 Hz
  • Safety integrity level: SIL 2 (IEC 61508)
  • Category: Category 2 (ISO 13849-1)
  • Performance level: PL d (ISO 13849-1)
  • PFHD: 6.0 x 10^-8
  • Mission time: 20 years
  • Type: Type 3 (ISO 14119-1)
  • Actuator coding level: Uncoded (EN ISO 14119)
  • Safe state on fault: At least one safety-related semiconductor output is OFF
  • Connection type: Male connector M12, 4-pin
  • Coupling nut material: Nickel-plated brass
  • Display elements: LEDs with diagnostics and status display
  • Protection class: III (IEC 61140)
  • Rated insulation voltage Ui: 28.8 V
  • Rated impulse withstand voltage Uimp: 1,500 V
  • Supply voltage Vs: 24 V DC (19.2 V DC to 28.8 V DC)
  • Power consumption: ≤ 20 mA
  • Response time: ≤ 1 ms
  • Release time: ≤ 2 ms
  • Risk time: ≤ 20 ms
  • Switch-on time: 1 s
  • Housing material: Nickel-plated brass
  • Sensor surface: VISTAL®
  • Installation type: Flush
  • Enclosure rating: IP67 (IEC 60529)
  • Operating temperature: -25 °C to +70 °C
  • Storage temperature: -25 °C to +70 °C
  • Relative humidity: 50% at 70 °C
  • Vibration resistance: 10 Hz to 55 Hz, 1 mm
  • EMC standards: IEC 60947-5-2, IEC 60947-5-3, IEC 61000-6-7
  • Dimensions (H x L x W): 69mm x 69mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Inductive sensor principle with 2 safe outputs
  • M18 cylindrical housing with flush installation
  • Sensing range of 5 mm with assured switch on/off distances
  • Safety integrity level SIL 2 and Performance level PL d
  • Self-monitoring semiconductor outputs (OSSDs)
  • LED status display and diagnostics indicator
  • Protection class III with IP67 enclosure rating
  • Operating temperature range from -25°C to +70°C
  • Includes mounting nuts made of nickel-plated brass
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety sensor integration and electrical standards to ensure compliance and optimal performance.
Applications
  • Industrial automation safety monitoring
  • Machine safety and control systems
  • Factory automation requiring safe sensor outputs
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable nickel-plated brass housing ensures long service life reducing waste
  • Low power consumption (≤ 20 mA) contributes to energy efficiency
  • Robust IP67 rating protects against environmental damage, reducing replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK IME2S18-05B4DC0 Inductive Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
