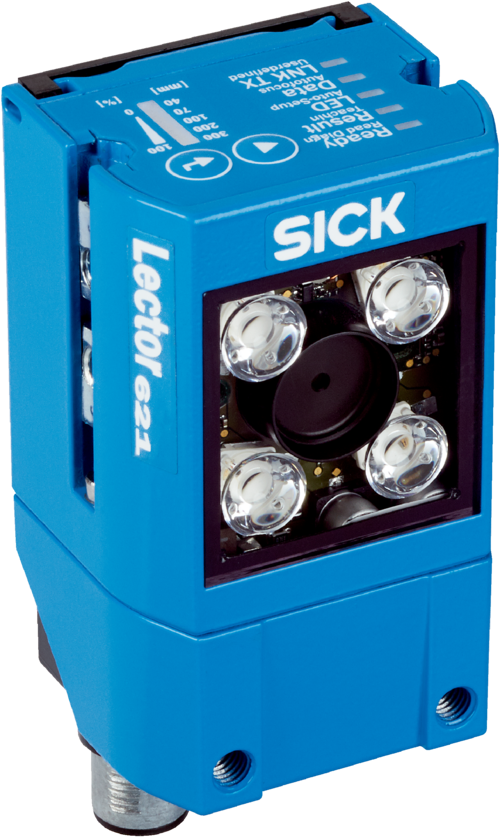

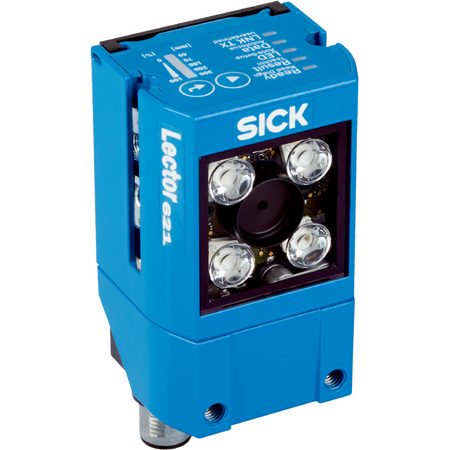

Industrial Barcode Reader V2D621R-2MSFFB5 CMOS 1.3MP Sensor IP65 Rated SICK

BRAND: SICK
SKU: 1085375
$8,384.10 List price: $10,537.90
+ −
30 Days Return Electricians Unlock Trade Access
The Industrial Barcode Reader V2D621R-2MSFFB5 features a high-resolution CMOS monochrome sensor with 1.3 Megapixel clarity
Technical Specifications
  • Sensor: CMOS monochrome, 1280 px x 1024 px (1.3 Mpixel)
  • Illumination: Integrated red (617 nm ±15 nm) and blue (470 nm ±15 nm) LEDs
  • Laser alignment aid: Red laser 630 nm to 680 nm, Class 1
  • Scanning frequency: 50 Hz
  • Code resolution: 0.25 mm
  • Working range: 300 mm to 1500 mm
  • Connection types: 1 x M12 17-pin male, 1 x M12 4-pin Ethernet female
  • Supply voltage: 12 V DC to 24 V DC ±20%
  • Power consumption: Typical 4 W
  • Housing material: Aluminum die cast, light blue (RAL 5012)
  • Window material: Plastic
  • Enclosure rating: IP65
  • Protection class: III
  • Electrical safety: EN 62368
  • MTBF: 75,000 hours
  • Readable code structures: 1D, stacked, 2D codes
  • Supported bar code types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey, MSI/Plessey, Telepen, postal codes
  • Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, PDF417, QR code, MaxiCode
  • Data transmission rates: Ethernet 10/100 Mbit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 0.3 kBaud to 115.2 kBaud
  • Ambient operating temperature: 0°C to +50°C
  • Storage temperature: -20°C to +70°C
  • Permissible relative humidity: 90%, non-condensing
  • Electromagnetic compatibility: EN 61000-6-2, EN 61000-6-4
  • Vibration resistance: EN 60068-2-6
  • Shock resistance: EN 60068-2-27
  • Dimensions (H x L x W): 35.6mm x 71mm x 43mm
  • Weight: 0.17 kg
Key Features
  • Complete device with teach auto focus
  • CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
  • Integrated red and blue LED illumination
  • Laser alignment aid with red laser class 1
  • Reads 1D, stacked, and 2D codes including GS1-128, QR code, Data Matrix ECC200
  • Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, PROFIBUS DP
  • IP65 rated aluminum die cast housing with plastic window
  • Operating temperature range 0°C to +50°C
  • Supports image and data storage via microSD and FTP
  • 16 LEDs for optical indicators and acoustic beeper
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
  • Industrial automation for barcode and 2D code reading
  • Logistics and warehouse management
  • Manufacturing process control
  • Quality assurance and traceability systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Low power consumption at approximately 4 W reduces energy usage
  • Durable IP65 housing extends product life and reduces waste
  • Supports digital data transmission reducing paper usage
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK V2D621R-2MSFFB5 is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
