Industrial Ethernet Cable PROFINET Cat5 10m SICK

BRAND: SICK
SKU: 6050201
$324.30 List price: $407.60
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access

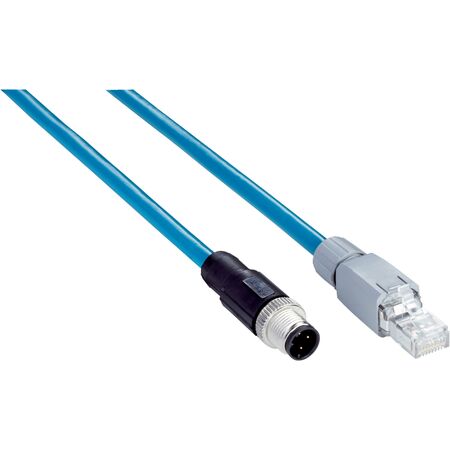

This SICK PROFINET Cat5 cable has a straight M12 4-pin D-coded connector on one end and an RJ45 8-pin connector on the other, running 10m for factory automation and PROFINET communication networks. It's built with a shielded PVC jacket and a zinc die-cast, nickel-plated locking nut for durability. The cable supports data transmission up to 100 Mbit/s and complies with AS/NZS 60950. Check the product details and compatible accessories below before ordering.
Technical Specifications
  • Connection type head A: Male connector, M12, 4-pin, straight, D-coded
  • Connection type head B: Male connector, RJ45, 8-pin, straight
  • Locking nut material: Zinc die-cast, nickel-plated
  • Cable: 10 m, 4-wire, AWG26, PVC
  • Jacket material: PVC
  • Cable diameter: 6.4 mm
  • Shielding: Shielded
  • Reference voltage: 48 V AC / 60 V DC
  • Signal type: Ethernet, PROFINET
  • Transmission characteristics: CAT5
  • Data transmission rate: ≤ 100 Mbit/s
  • Dimensions (H x L x W): 6mm x 6400mm x 6400mm
  • Weight: 0.2 kg
Key Features
  • Male connector, M12, 4-pin, straight, D-coded on head A
  • Male connector, RJ45, 8-pin, straight on head B
  • Shielded CAT5 cable for reliable data transmission
  • Supports data transmission rates up to 100 Mbit/s
  • Durable zinc die-cast, nickel-plated locking nut
  • 10 m length, 4-wire, AWG26 PVC cable with 6.4 mm diameter
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation and control systems
  • Factory Ethernet and PROFINET communication networks
  • Data transmission in manufacturing environments
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Complies with China-RoHS for reduced hazardous substances
  • Durable materials reduce need for frequent replacements
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK YM2D24-100EB2MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and factory communication networks.


FAQ

Q: What connector configuration does this SICK PROFINET cable have?

A: It has a straight M12 4-pin D-coded connector on one end and an RJ45 8-pin connector on the other, both shielded.

Q: What is this cable typically used for?

A: It's designed for industrial automation and control systems, plus factory Ethernet and PROFINET communication networks.


For shorter runs, the PROFINET Cat5 3m cable uses the same connector configuration.

For mid-length runs, the PROFINET Cat5 5m cable bridges the gap between shorter and longer options.

Where an angled M12 connector and IP67 rating are needed, the PROFINET Cat5 10m IP67 cable is the closer match.

Backed by SCHNAP's 30-day returns policy for added purchasing confidence.
