Industrial Ethernet Cable PROFINET Cat5 5m SICK

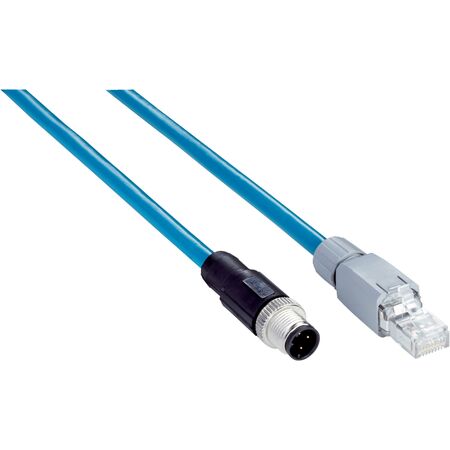

This SICK PROFINET Cat5 cable has a straight M12 4-pin D-coded connector on one end and an RJ45 8-pin connector on the other, running 5m for factory and process automation links. It's built with a shielded PVC jacket and a zinc die-cast, nickel-plated locking nut for durability. The cable supports data transmission up to 100 Mbit/s and complies with AS/NZS 60950. See the full description below for dimensions, ratings, and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking nut material: Zinc die-cast, nickel-plated
- Cable: 5 m, 4-wire, AWG26, PVC
- Jacket material: PVC
- Cable diameter: 6.4 mm
- Shielding: Shielded
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, D-coded on head A
- Male connector, RJ45, 8-pin, straight on head B
- Shielded CAT5 cable for reliable data transmission
- Supports data transmission rate up to 100 Mbit/s
- Durable zinc die-cast, nickel-plated locking nut
- 5 meter length, 4-wire, AWG26 PVC cable with 6.4 mm diameter
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- PROFINET communication networks
- Factory and process automation
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Complies with China-RoHS for reduced hazardous substances
- Durable materials reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK YM2D24-050EB2MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and communication network applications.
FAQ
Q: What connector configuration does this SICK PROFINET cable have?
A: It has a straight M12 4-pin D-coded connector on one end and an RJ45 8-pin connector on the other, both shielded.
Q: What applications is this cable designed for?
A: It's built for industrial automation and control systems, PROFINET communication networks, and factory and process automation.
For shorter runs, the PROFINET Cat5 3m cable uses the same connector configuration.
For longer distribution runs, the PROFINET Cat5 10m cable covers a much greater distance.
