Industrial Ethernet Cable PROFINET Cat5 3m SICK

BRAND: SICK
SKU: 6050199
$223.10 List price: $280.50
+ −
30 Days Return Electricians Unlock Trade Access

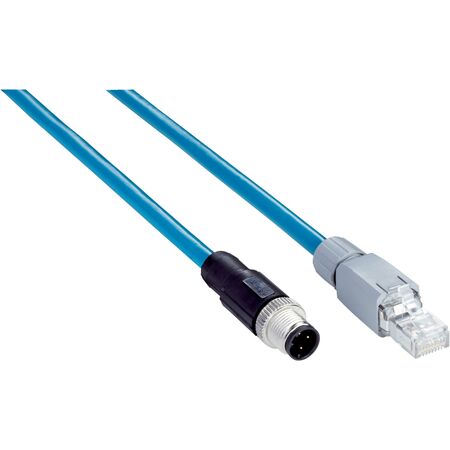

This SICK PROFINET Cat5 cable has a straight M12 4-pin D-coded connector on one end and an RJ45 8-pin connector on the other, running 3m for short automation and control system links. It's built with a shielded PVC jacket and a zinc die-cast, nickel-plated locking nut for durability. The cable supports data transmission up to 100 Mbit/s and complies with AS/NZS 60950. Spec sheet and application notes are available in the section below.
Technical Specifications
  • Connection type head A: Male connector, M12, 4-pin, straight, D-coded
  • Connection type head B: Male connector, RJ45, 8-pin, straight
  • Locking nut material: Zinc die-cast, nickel-plated
  • Cable: 3 m, 4-wire, AWG26, PVC
  • Jacket material: PVC
  • Cable diameter: 6.4 mm
  • Shielding: Shielded
  • Reference voltage: 48 V AC / 60 V DC
  • Signal type: Ethernet, PROFINET
  • Transmission characteristics: CAT5
  • Data transmission rate: ≤ 100 Mbit/s
  • Dimensions (H x L x W): 10mm x 3000mm x 10mm
  • Weight: 0.1 kg
Key Features
  • Male connector, M12, 4-pin, straight, D-coded on head A
  • Male connector, RJ45, 8-pin, straight on head B
  • Shielded CAT5 cable for reliable data transmission
  • 3 meter length with 4-wire, AWG26 PVC cable
  • Zinc die-cast, nickel-plated locking nut for durability
  • Supports Ethernet and PROFINET signal types
  • Data transmission rate up to 100 Mbit/s
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation and control systems
  • Factory Ethernet and PROFINET network connections
  • Data transmission in manufacturing environments
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Complies with China-RoHS for reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK YM2D24-030EB2MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and network communication applications.


FAQ

Q: What connector configuration does this SICK PROFINET cable have?

A: It has a straight M12 4-pin D-coded connector on one end and an RJ45 8-pin connector on the other, both shielded.

Q: What is this cable typically used for?

A: It's designed for industrial automation and control systems, plus factory Ethernet and PROFINET network connections.


For mid-length runs, the PROFINET Cat5 5m cable extends this connector type a little further.

For longer distribution runs, the PROFINET Cat5 10m cable covers a much greater distance.

Where an angled M12 connector and IP67 rating are needed, the PROFINET Cat5 10m IP67 cable is the closer match.
