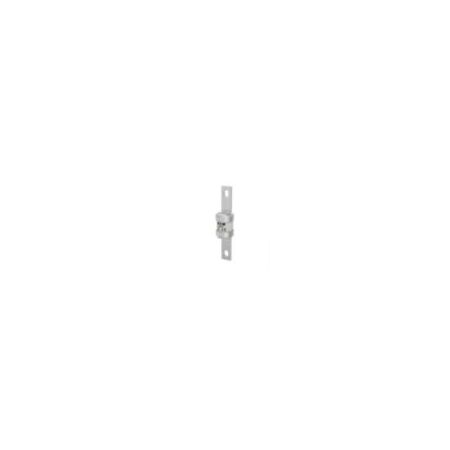

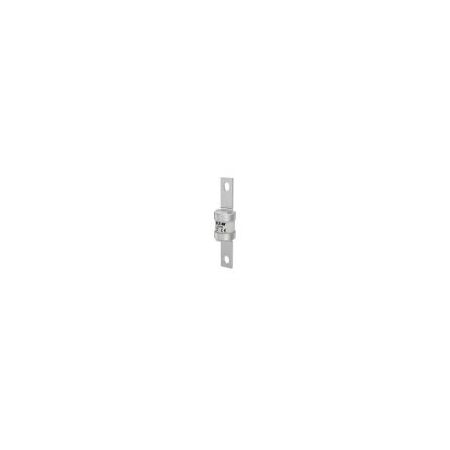

Industrial Fuse 250AMP 415V AC | 80kA Breaking Capacity | gG/gL Class | Centre Bolted Tags by Eaton
250AMP 415V AC industrial fuse with an 80kA breaking capacity and gG/gL class for general purpose protection—ideal for electrical panels and machinery. Built for industrial applications, it features centre bolted tags for secure fitting and complies with BS88 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Fuse 250AMP 415V AC | 80kA Breaking Capacity | gG/gL Class | Centre Bolted Tags by Eaton
Brand: Eaton
SKU: ED250
Alternatively Known As: 250A Industrial Fuse, 415V AC Fuse, BS88 Fuse, Bussmann Fuse ED250, Low Voltage Fuse
Technical Specifications
- Amperage Rating: 250 A
- Voltage Rating: 415 V AC
- Breaking Capacity: 80 kA
- Fuse Class: gG/gL
- Fuse Type: ED
- Construction Standards: BS88/B3, BS88/B4
- Dimensions: 31 mm x 31 mm x 136 mm
- Fitted with centre bolted tags
- Dimensions (H x L x W): 31mm x 136mm x 31mm
- Weight: 0.168 kg
Key Features
- Low voltage British standard fuse
- Rated at 250 A and 415 V AC
- Breaking capacity of 80 kA
- Class gG/gL fuse type for general purpose protection
- Centre bolted tags for secure fitting
- Complies with BS88/B3 and BS88/B4 construction standards
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse fitting.
Applications
- Industrial electrical systems requiring low voltage fuse protection
- Electrical panels and switchboards
- Machinery and equipment protection in commercial and industrial settings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable design reduces waste through long service life
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton 250AMP 415V AC Industrial Fuse ED250 is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
