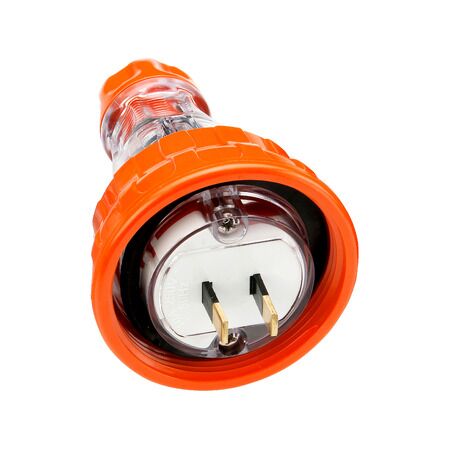

Industrial Plug Top 10A | IP66 Rated | Electric Orange by Clipsal

BRAND: Clipsal
SKU: 56P210-EO
$54.90 List price: $82.30
+
Industrial plug top with 10A current and IP66 rating—ideal for small commercial and utility applications. Built for robust performance, with electric orange polycarbonate housing for high visibility.

Product Name/Title: Clipsal - 56 Series, Plug Top, Straight, 2 Flat PIN, 10A, 110V, IP66 - Electric Orange

Brand: Clipsal

SKU: 56P210-EO

Alternatively Known As: Industrial Plug, 10A Plug, IP66 Plug

Technical Specifications
  • Rated current: 10A
  • Rated operational voltage: 250V AC 50Hz
  • Material: Polycarbonate housing
  • Connections: Screw terminal 0.75-1 mm²
  • Cable entry: Cable gland
  • Pin arrangement: D
  • Service life: 4 hours
  • Dimensions (H x L x W): 67mm x 112.5mm x 67mm
  • Weight: 0.14 kg
Key Features
  • IP66 rated for protection against dust and water.
  • Designed for industrial use with a robust build.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Power supply for small commercial and utility applications.
Standards & Compliance
  • Complies with AS/NZS 3112 and IP66 standards.
Environmental Benefits
  • Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal 56 Series Plug Top is available now for immediate purchase. Ideal for industrial applications requiring reliable power supply.

56P210-EO (56P210-EO, 230 Kb) [Download]
