Industrial Plug Top 15A | 32V | IP66 Rated | Grey by Clipsal
Industrial plug top with 15A current and 32V voltage—ideal for utility and small commercial applications. Built for durability, with IP66 rating for dust and water protection.
Sign in
Please login to continue to your account.

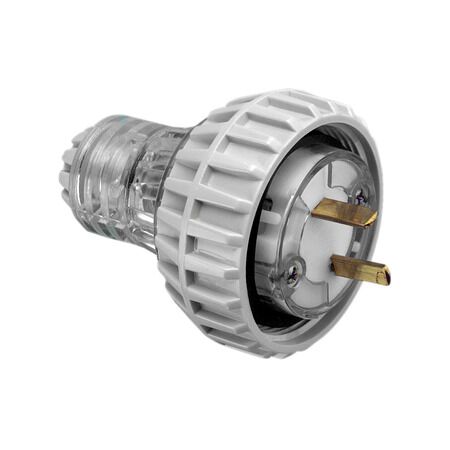

Product Name/Title: Clipsal - 56 Series, Plug Top, Straight, 2 Polarised PIN, 15A, 32V, IP66 - Grey
Brand: Clipsal
SKU: 56P215/32-GY
Alternatively Known As: Clipsal 56 Series Plug, Industrial Plug, 15A Plug Top
- Rated current: 15A
- Rated operational voltage: 32V DC
- Material: Polycarbonate housing
- Connections: Screw terminal 1.5-1.5 mm²
- Cable entry: Cable gland
- Pin arrangement: E
- Ambient air temperature for operation: -25...75 °C
- Dimensions (H x L x W): 67mm x 112.5mm x 67mm
- Weight: 0.12 kg
- IP66 rated for protection against dust and water.
- Designed for industrial applications with a robust build.
- Professional installation is recommended for optimal safety.
- Utility industry
- Small commercial
- Complies with AS/NZS 3112 and AS 60529 for safety and performance.
- Compliant with RoHS directives, reducing harmful substances.
Standard warranty applies.
The Clipsal 56 Series Plug Top is available now for immediate purchase. Ideal for industrial and small commercial applications.
