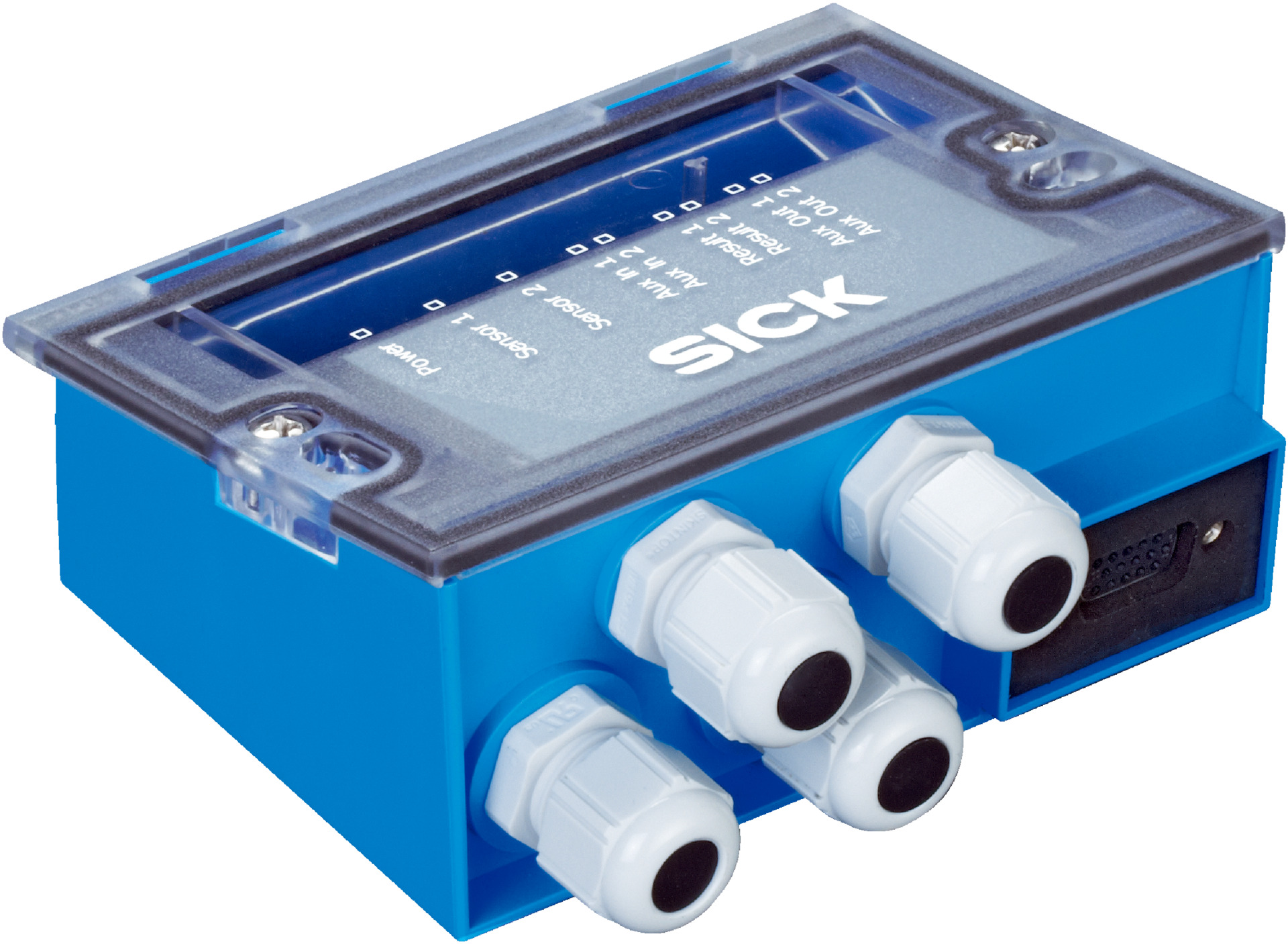

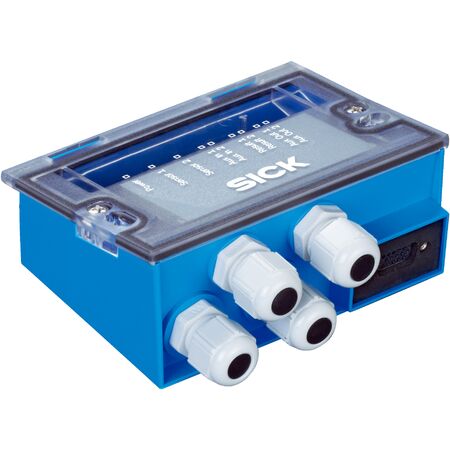

Industrial Sensor Connection Module CDB620-001 | IP65 Enclosure | 4 Cable Glands | by SICK
The Industrial Sensor Connection Module CDB620-001 is designed for seamless sensor integration in automation systems. With an IP65-rated polycarbonate housing and support for multiple serial interfaces, it ensures reliable connectivity for various sensor series. Ideal for industrial applications, this module features low power consumption and 9 LED indicators for status display, making it a perfect choice for efficient sensor management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Sensor Connection Module CDB620-001 | IP65 Enclosure | 4 Cable Glands | by SICK
Brand: SICK
SKU: 1042256
Alternatively Known As: Sensor Connection Module, CMC600 Base Module, Industrial Sensor Interface Module
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 1 W
- Housing material: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: 15-pin D-Sub HD female connector
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Serial (RS-232, RS-422, RS-485), CAN depending on sensor
- Optical indicators: 9 LEDs
- Operating temperature: -35°C to +40°C
- Storage temperature: -35°C to +70°C
- Relative humidity: ≤ 90%, non-condensing
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 53.9mm x 124.2mm x 113.1mm
- Weight: 0.26 kg
Key Features
- Small connection module designed for one sensor
- Equipped with 4 cable glands
- Polycarbonate housing with IP65 enclosure rating
- Supports cloning module (CMC)
- 9 LED optical indicators for status display
- Supports multiple serial interfaces: RS-232, RS-422, RS-485 depending on sensor
- CAN interface support depending on sensor connected
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 1 W
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor integration and compliance with electrical standards.
Applications
- Industrial automation sensor connectivity
- Integration with CLV61x - CLV65x, Lector62x, RFH6xx, RFU62x sensor series
- Base module for CMC600 cloning module systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65 housing extends product lifespan reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CDB620-001 Small Connection Module is available for immediate purchase, ideal for industrial sensor connectivity and automation system integration.
