Industrial Socket Outlet 10A 250V | IP66 Rated | Surface Mount by Clipsal
Industrial socket outlet with 10A, 250V capacity and IP66 rating—ideal for machinery and equipment. Built for industrial and commercial use, with surface mount design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

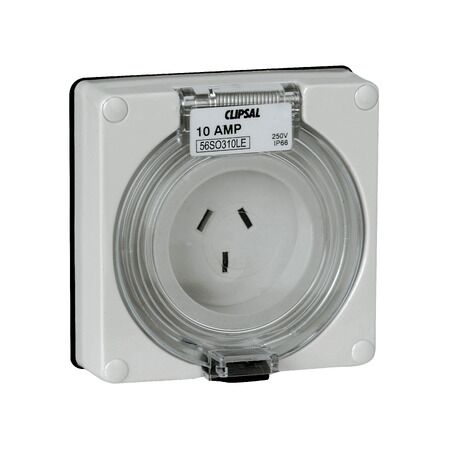

Product Name/Title: Clipsal - 56 Series, Socket Outlet Surface 3 Flat PIN 10A, 250V Less Enclosure - Resistant White Electric
Brand: Clipsal
SKU: 56SO310LE-RW
Alternatively Known As: Clipsal 56 Series Socket, 10A Socket Outlet, Industrial Socket Outlet
Technical Specifications
- Rated current: 10A
- Rated operational voltage: 250V AC 50Hz
- Device mounting: Surface
- Socket number: 1
- Outlet standard: Industrial
- Cable outer diameter: 9-29 mm
- Material: ABS housing, brass screws
- IP Rating: IP66
- Ambient air temperature for operation: -25 to 75 °C
- Conforms to AS/NZS 3112 and AS/NZS 4417.1
- Dimensions (H x L x W): 107mm x 64mm x 101mm
- Weight: 0.3 kg
Key Features
- IP66 rated for protection against dust and water ingress.
- Surface mounting design for easy installation.
- Screw terminals for secure connections.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power supply for machinery and equipment
- Commercial: Small commercial applications
- Utility: Suitable for utility installations
Standards & Compliance
- Complies with AS/NZS 3112 and AS/NZS 4417.1 for safety and performance.
Environmental Benefits
- Compliant with RoHS directives, reducing hazardous substances.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Socket Outlet Surface 3 Flat PIN 10A, 250V is available now for immediate purchase. Ideal for industrial and commercial applications.
