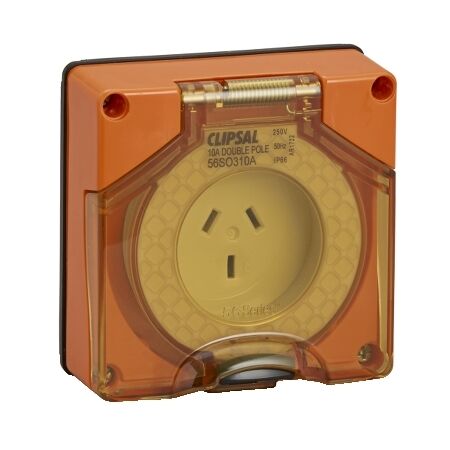

Industrial Socket Outlet 10A | IP66 Rated | Surface Mount | Resistant Orange by Clipsal
Industrial socket outlet with 10A current and IP66 rating—ideal for utilities and small commercial applications. Built for durability, with surface mount design and resistant orange finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal - 56 Series, Socket Outlet, Surface Auto 10A Less Enclosure - Resistant Orange
Brand: Clipsal
SKU: 56SO310ALE-RO
Alternatively Known As: Clipsal 56 Series Socket, Industrial Socket Outlet, Surface Mount Socket
Technical Specifications
- Number of poles: 2
- Device mounting: surface
- Rated current: 10A
- Rated operational voltage: 250V AC 50Hz
- Connections: screw terminals 1.5-6 mm²
- Socket number: 1
- Outlet standard: industrial
- Cable outer diameter: 9-29 mm
- IP Rating: IP66
- Ambient air temperature for operation: -25 to 75 °C
- Material: Polycarbonate cover, brass screws
- Dimensions (H x L x W): 107mm x 64mm x 101mm
- Weight: 0.222 kg
Key Features
- IP66 rated for protection against dust and water.
- Surface mounting design for easy installation.
- Rated current of 10A and operational voltage of 250V AC.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Power supply for utilities and small commercial applications.
Standards & Compliance
- Complies with AS/NZS 3112 and AS/NZS 4417.1.
Environmental Benefits
- Compliant with RoHS directives, reducing harmful substances.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal 56 Series Socket Outlet Surface Auto 10A is available now for immediate purchase. Ideal for industrial applications requiring reliable power supply.
