Industrial Socket Outlet 3P+E 30A | 440V AC | IP66 Rated | Polyamide by NHP
Industrial socket outlet with 3P+E configuration and 30A capacity—ideal for factories and warehouses. Built for high current applications, with IP66 protection and durable polyamide construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

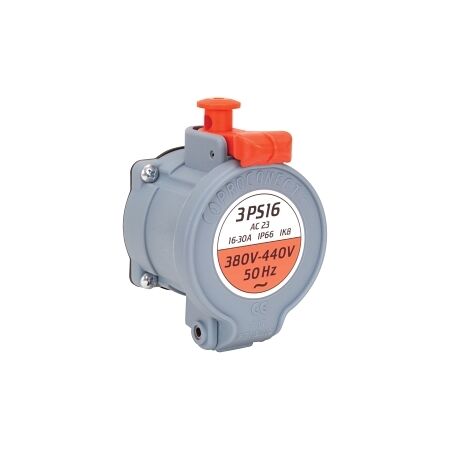

Product Name/Title: PROCONECT 3PS16 Socket Outlet, 3P+E 30A (AC23 16A) 440V AC
Brand: NHP
SKU: 3PS1D30E01
Alternatively Known As: High Current Socket Outlet, 3 Phase Socket, Industrial Socket Outlet
Technical Specifications
- Amperage: 30 A
- Voltage: 380-440 V
- Contact Configuration: 3P+E
- Construction Type: Outlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 1.6 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 50mm x 84mm x 100mm
- Weight: 0.24 kg
Key Features
- 3P+E configuration for enhanced safety and reliability.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Factories, manufacturing plants
- Commercial: Large retail spaces, warehouses
- General: Any location requiring high current socket outlets
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The PROCONECT 3PS16 Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high current connectivity.
