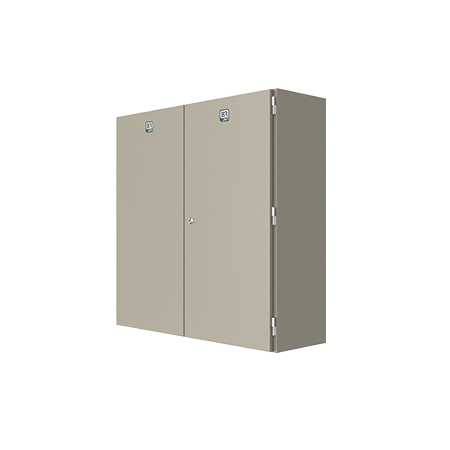

Industrial Steel Enclosure 1600Hx1000Wx400D | IP55 | RAL7032 by B&R Enclosures

SKU: DD16104
$4,262.80 List price: $5,357.90
Free pick up (over 25 kg)
For delivery quote message
Industrial steel enclosure with IP55 protection and fully welded construction—ideal for automation and process control. Built for durability, with 180º door opening and robust 3-point locking system.

Product Name/Title: Enclosure DD 1600Hx1000Wx400D IP55 Steel RAL7032

Brand: B&R Enclosures

SKU: DD16104

Alternatively Known As: Zinc Coated Steel Enclosure, Industrial Steel Enclosure, IP55 Enclosure

Technical Specifications
  • Material: Zinc coated steel
  • Protection Rating: IP55
  • Construction: Fully welded
  • Locking System: 3-point locking
  • Usable Depth: 350mm
  • Door Opening: 180º
  • Dimensions (H x L x W): 1600mm x 400mm x 1000mm
  • Weight: 119.3 kg
Key Features
  • IP55 protection rating
  • Fully welded construction
  • Unobstructed access to mounting pan
  • Robust 3-point locking system
  • Depth adjustable mounting pan
  • 180º opening doors
  • Gland plates fitted internally or externally
  • Powdercoated 1.6mm zinc coated steel
  • RAL7032 pebble grey powdercoat paint finish
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance with standards.
Applications
  • Industrial automation
  • Process control applications
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Universal DD – Zinc Coated Steel Enclosure is available now for immediate purchase, ideal for industrial applications.
