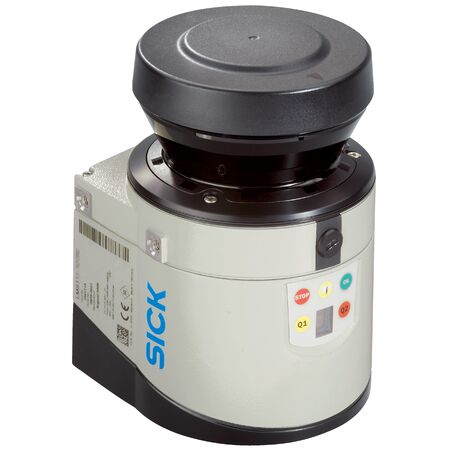

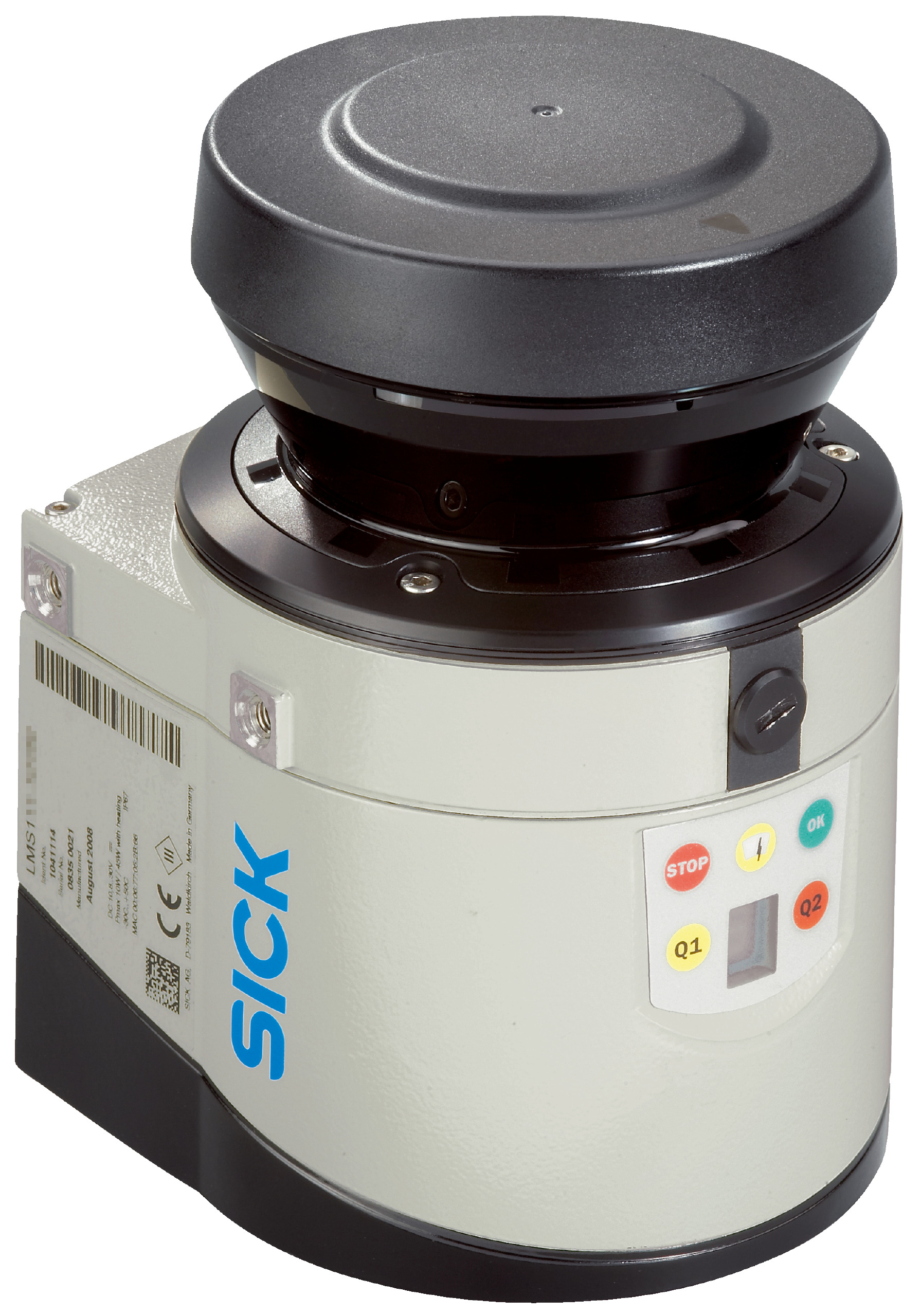

Infrared Laser Scanner LMS111-10100 | 270° Aperture Angle | 25 Hz & 50 Hz Scanning Frequency | IP67 Rated | by SICK
The Infrared Laser Scanner LMS111-10100 is designed for precise object detection and scanning in both indoor and outdoor environments. With a wide horizontal aperture angle of 270° and scanning frequency options of 25 Hz and 50 Hz, it ensures reliable performance in industrial automation and safety monitoring applications. Its robust IP67 rated enclosure and integrated heating make it suitable for various environmental conditions, providing durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Laser Scanner LMS111-10100 | 270° Aperture Angle | 25 Hz & 50 Hz Scanning Frequency | IP67 Rated | by SICK
Brand: SICK
SKU: 1041114
Alternatively Known As: Infrared Laser Scanner, SICK LMS111, Industrial Laser Scanner, 2D Laser Scanner
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° and 0.5° options
- Scanning frequency: 25 Hz, 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 20 m
- Amount of evaluated echoes: 2
- Fog correction: Yes
- Connection type: 1 x M12 round connector
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Data transmission rate: 9.6 kBaud to 115.2 kBaud
- Ambient operating temperature: –30 °C to +50 °C
- Storage temperature: –30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m to 20 m with fog correction
- IP67 rated enclosure for robust outdoor and indoor use
- Integrated heating for operation in cold environments
- Multiple interfaces including Ethernet TCP/IP, RS-232 serial, and CAN
- 7-segment display with LEDs for device status and warnings
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical standards to ensure compliance and optimal performance.
Applications
- Outdoor and indoor object detection and scanning
- Industrial automation and safety monitoring
- Field evaluation and environmental scanning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient infrared laser technology reduces power consumption.
- Durable IP67 housing extends product life and reduces waste.
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK LMS111-10100 Infrared Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and environmental scanning applications.
