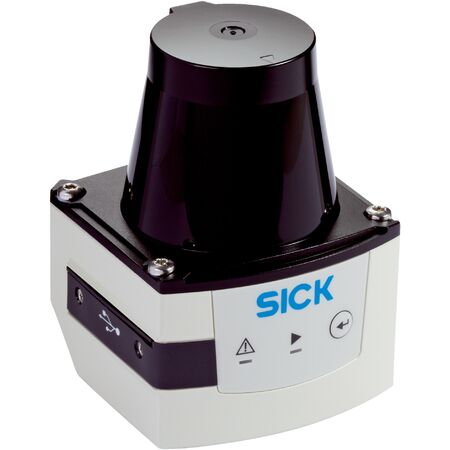

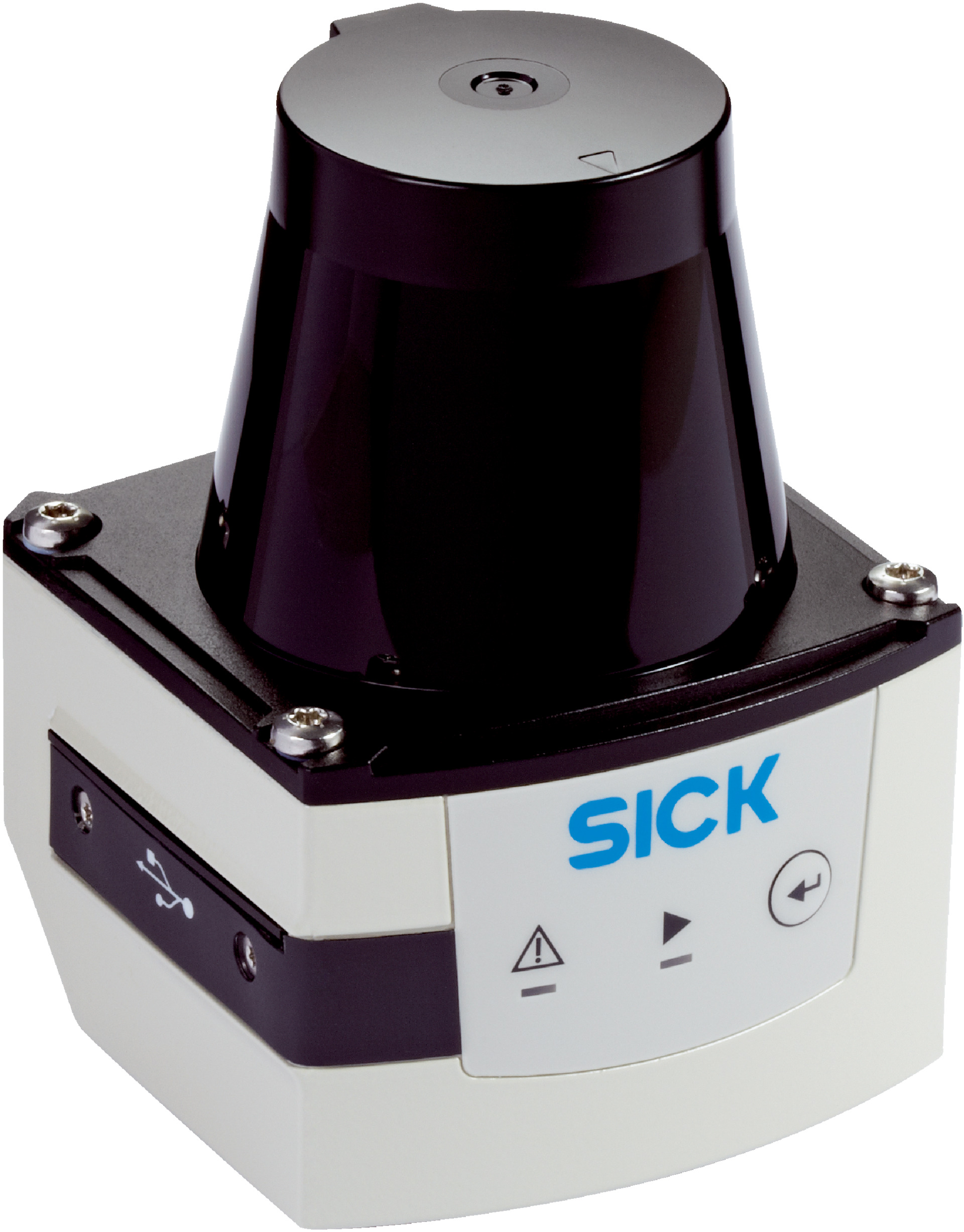

Infrared Laser Scanner TIM361-2134101S02 | HDDM+ Measurement | IP67 Rated | 270° Aperture Angle | by SICK
The Infrared Laser Scanner TIM361-2134101S02 utilizes HDDM+ technology with an infrared light source for precise object detection and measurement. With a wide horizontal aperture angle of 270° and a robust IP67 rated housing, it's perfect for both indoor and outdoor industrial automation applications. Designed for reliability, it operates effectively in harsh environments, ensuring safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 0.33°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 10 m
- Scanning range at 10% remission factor: 8 m
- Connection types: Ethernet (4-pin M12 female), Power (12-pin M12 male), Micro USB type B
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with max loaded digital outputs
- Output current: ≤ 100 mA
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Response time: 1 scan typ. 67 ms, 2 scans ≤ 134 ms
- Digital inputs: 4, Outputs: 3 NPN plus 1 Device Ready
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Shock resistance: up to 50 g
- Vibration resistance: 10 Hz to 1000 Hz
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1 standards
- Wide horizontal aperture angle of 270° with 0.33° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 10 m
- Robust IP67 rated housing for harsh environments
- Multiple interfaces including Ethernet, Micro USB, and digital I/O
- Configurable delay and dwell times for flexible operation
- High vibration and shock resistance for industrial use
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Outdoor and indoor object detection and measurement
- Industrial automation and safety monitoring
- Field evaluation and contour detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of typically 4 W reduces energy usage
- Durable IP67 housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK TIM361-2134101S02 infrared laser scanner is available for immediate purchase, ideal for industrial automation and safety applications.
