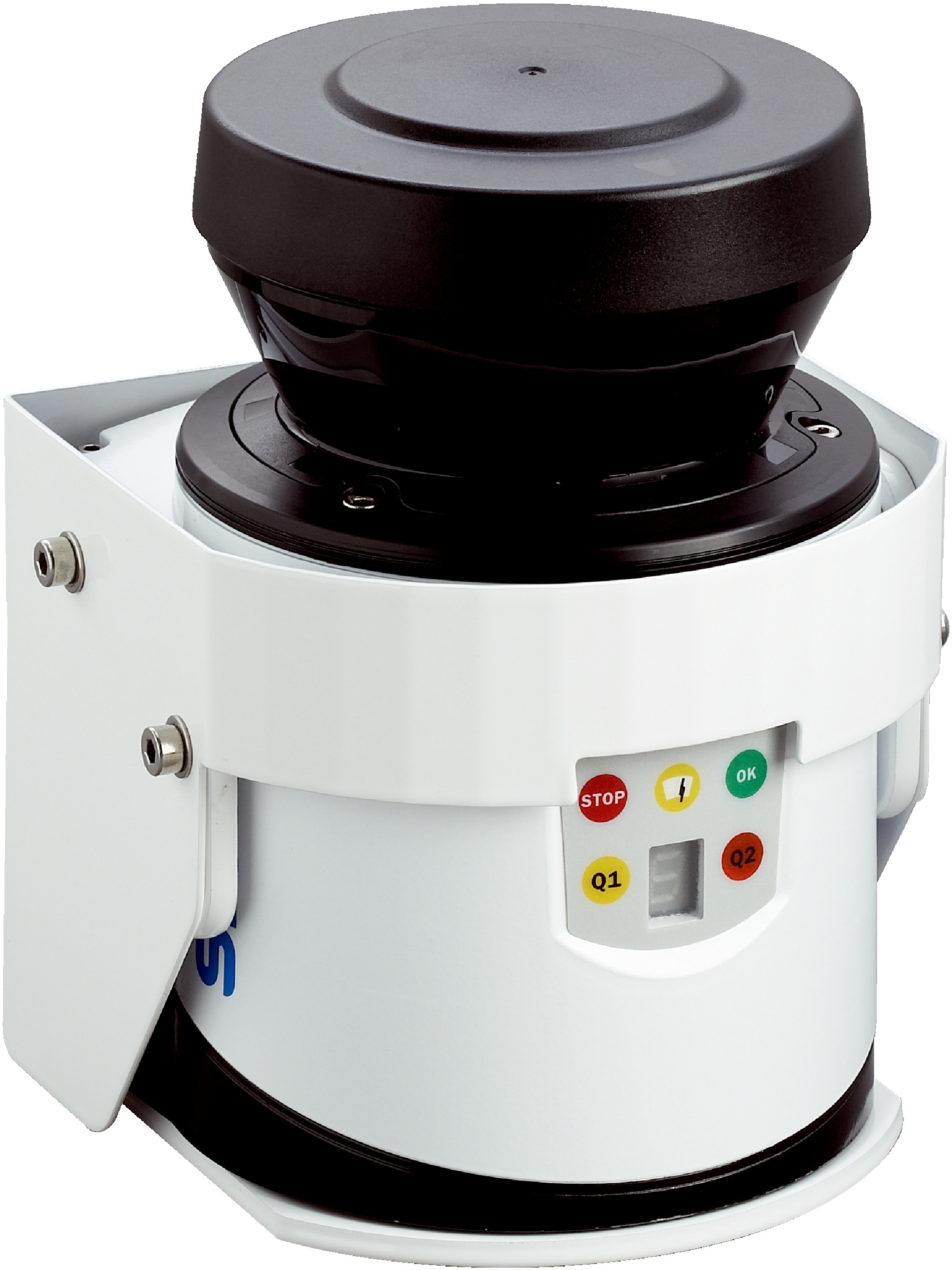

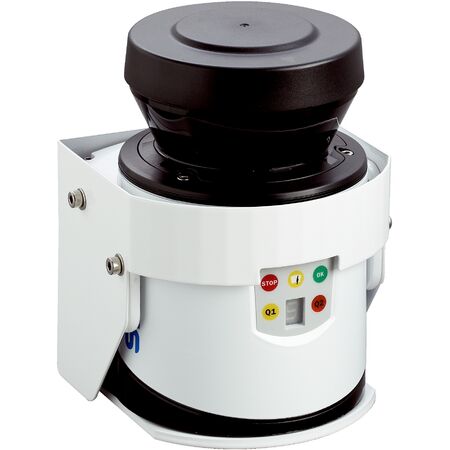

Infrared Laser Security Sensor LMC133-11101 | IP67 Rated | 270° Aperture Angle | 50 Hz Scanning Frequency | by SICK
The LMC133-11101 VdS infrared laser security sensor is designed for advanced security applications, featuring a 270° horizontal aperture angle and a scanning frequency of 50 Hz. With a working range of 0.5 m to 20 m and an IP67 enclosure rating, it ensures reliable performance in both indoor and outdoor environments, making it ideal for intrusion detection and perimeter protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Infrared Laser Security Sensor LMC133-11101 | IP67 Rated | 270° Aperture Angle | 50 Hz Scanning Frequency | by SICK
Brand: SICK
SKU: 1051489
Alternatively Known As: SICK LMC133 VdS Security Sensor, SICK Infrared Laser Scanner, SICK Outdoor Security Sensor, SICK LIDAR Sensor for Security
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° and 0.5°
- Scanning frequency: 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Amount of evaluated echoes: 2
- Connection type: 1 x M12 round connector
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W, 20 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 50178)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Ethernet: TCP/IP, 10/100 MBit/s
- Serial: RS-232, 9.6 kBaud to 115.2 kBaud
- CAN bus: Supported
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 40,000 lx
- Dimensions (H x L x W): 152mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source with 905 nm wavelength
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency of 50 Hz for rapid detection
- Working range from 0.5 m up to 20 m, with scanning range up to 18 m at 10% remission factor
- IP67 rated enclosure for dust and water protection
- Signal white housing (RAL 9003) with robust design
- Multiple interfaces including Ethernet (TCP/IP), RS-232 serial, and CAN bus
- Digital inputs and outputs with relay and digital options
- Heating function for operation in cold environments
- High MTBF and MTTFD values exceeding 100 years
- Optical indicators with 7-segment display and LEDs for status and warnings
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with security sensor systems and electrical safety standards to ensure compliance and optimal performance.
Applications
- Security systems for outdoor and indoor environments
- Intrusion detection and perimeter protection
- Industrial safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with typical 8 W operation and heating option for energy efficiency
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Long service life with MTBF over 100 years reduces environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK LMC133-11101 VdS infrared security sensor is available for immediate purchase, ideal for advanced security applications in both outdoor and indoor environments.
