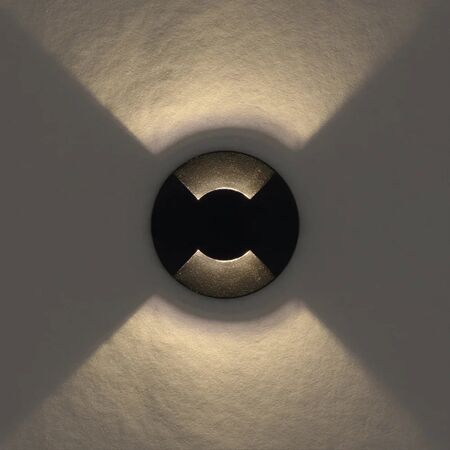

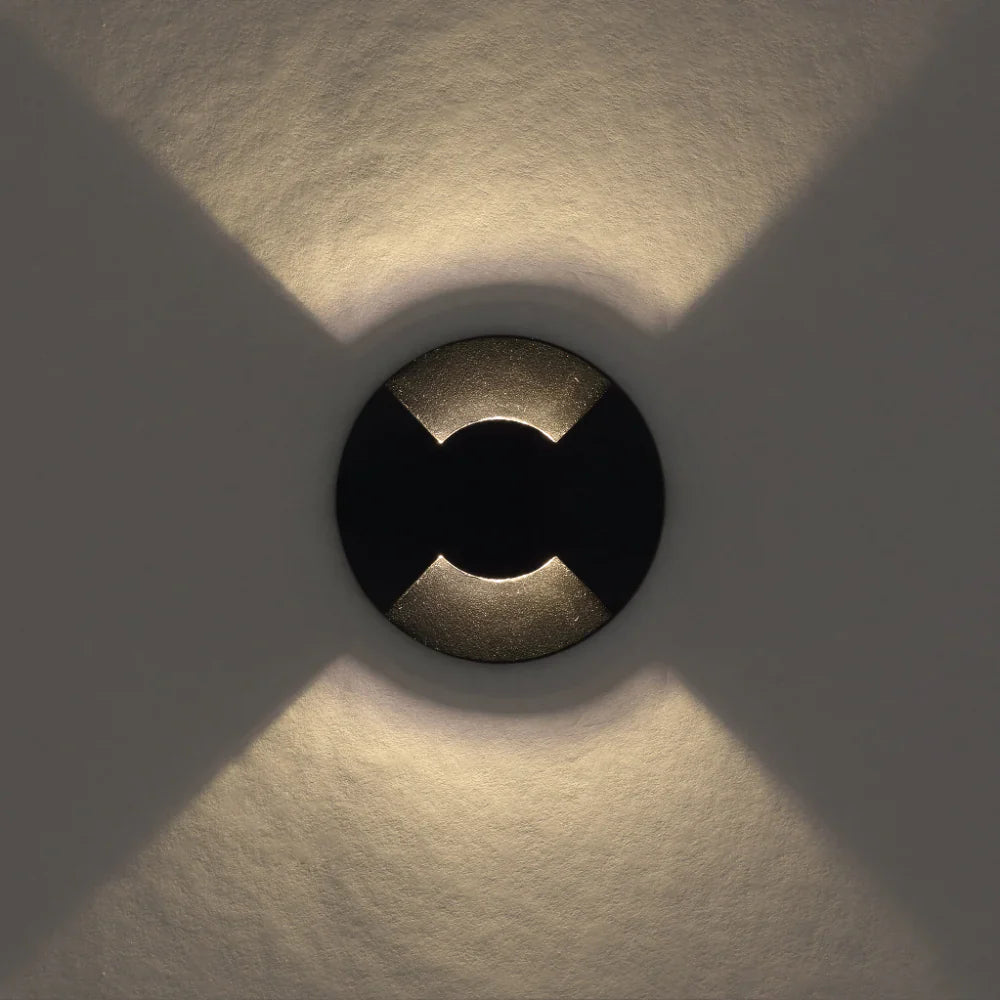

Inground Light 24V LED 3W 3000K IP65 2 Way Black Raker Telbix

BRAND: Telbix
SKU: RAKER G23-BK324
$54.80 List price: $73.10
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Raker 24V inground light features 3W LED 3000K, two-way beam, IP65 rating, 44mm cut-out and 1m cable in black. Ideal for decks and pathways.

Alternatively Known As: Telbix Raker G23-BK324, 2-Way Recessed LED Ground Light, Outdoor Deck and Pathway Light

Technical Specifications
  • Model: G23-BK324
  • Voltage Input: 24V DC
  • Wattage: 3W maximum
  • Light Source: Integrated SMD LED
  • Colour Temperature: 3000K warm white
  • Light Distribution: 2-way beam
  • Lumen Output: 14 lm
  • Colour Rendering Index: >95
  • IP Rating: IP65
  • Electrical Protection: Class III low voltage, below 54V
  • Material: Aluminium and glass
  • Finish: Black
  • Mounting: Recessed inground installation
  • Cut-out Diameter: Approximately 44mm; 56mm with canister
  • Cable Length: 1000mm
  • Dimmable: No
  • Approvals: RCM
  • Dimensions (H x L x W): 85mm x 62mm x 62mm
  • Weight: 0.22 kg
Key Features
  • Two-way light distribution for pathways, decks, gardens, steps and outdoor architectural features
  • Integrated 3W LED with warm 3000K colour temperature
  • Safe 24V low-voltage operation
  • IP65-rated construction for protection against dust and water jets
  • Black aluminium and glass construction
  • Recessed inground design with approximately 44mm cut-out
  • Includes 1m connection cable
  • High colour rendering with CRI greater than 95
Professional Installation Requirements
  • Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000. Use a compatible 24V DC driver or transformer, and ensure all outdoor connections are suitably protected from moisture.
Applications
  • Deck and patio lighting
  • Garden and landscape lighting
  • Pathway and driveway illumination
  • Step and stair lighting
  • Retaining walls and outdoor architectural features
  • Residential and commercial outdoor areas
Standards & Compliance
  • AS/NZS 3000:2018 Electrical installations, for electrical installation and wiring requirements
  • AS/NZS 60598.2.2:2016 Particular requirements for recessed luminaires
Environmental Benefits
  • Integrated LED technology provides efficient illumination using 3W of power
  • Low-voltage 24V operation can support efficient outdoor lighting system design
  • Aluminium components are recyclable at end of service life
  • Durable IP65 construction can help extend product service life and reduce replacement waste
Warranty Information

Telbix provides a general 3-year warranty from the purchase date where no product-specific warranty is stated, covering manufacturing defects and defects in materials or workmanship. Warranty conditions require installation by a licensed electrician. Clearance, sale and obsolete products may carry a 1-year warranty.

Available Now

Available through Telbix and authorised Australian lighting distributors.
