Inground Light LED 1W 24V 3000K 45mm Natural Brass Halon Telbix

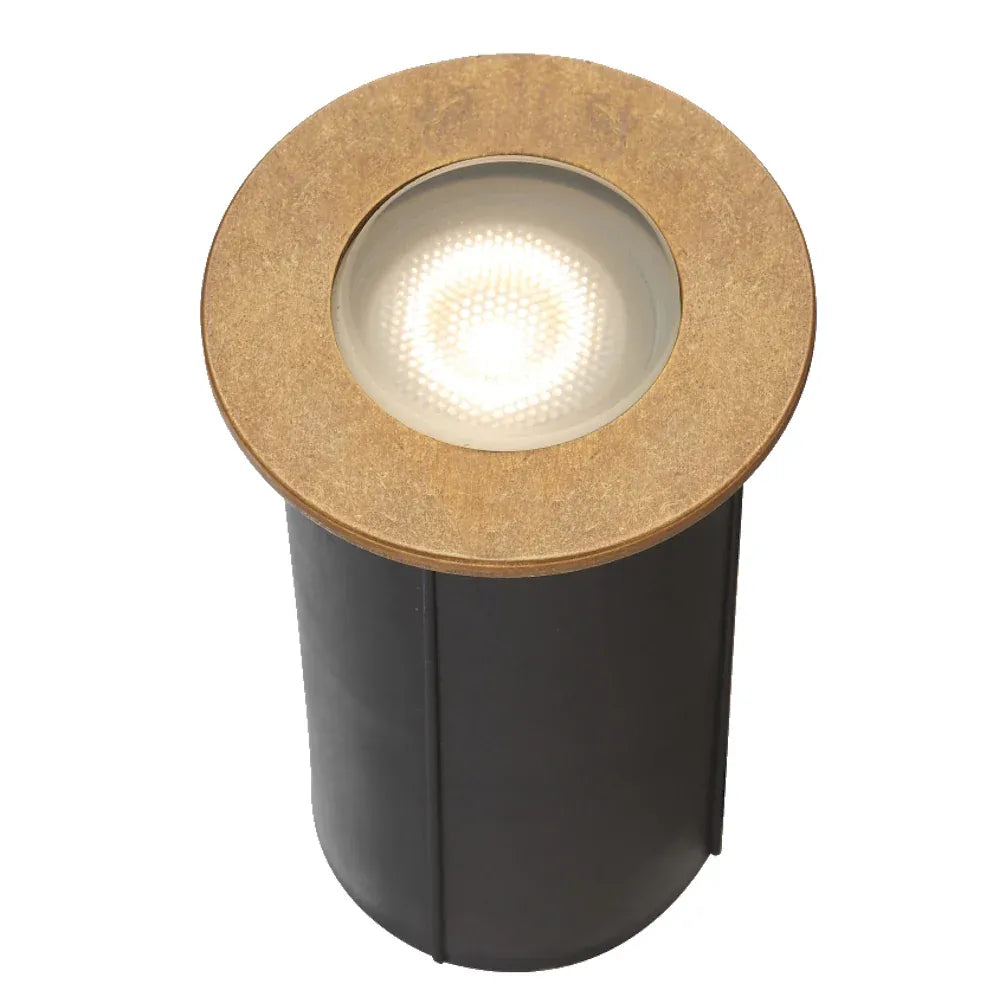

Telbix Halon brass inground light features 1W 24V LED, 3000K warm white and 110lm output. 45mm diameter, 80mm depth, 1m cable. Natural brass finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Halon 24V LED Inground Uplight, Halon Outdoor Inground Light, Telbix HALON G1-BRS324
Technical Specifications
- Voltage Input: 24V DC
- Rated Power: 1W
- Light Source: Integrated LED
- Colour Temperature: 3000K warm white
- Light Output: 110 lm
- Beam Angle: 45°
- Colour Rendering: CRI >90
- Ingress Protection: IP67
- Electrical Protection: Class III low voltage
- Material: Solid brass and glass
- Finish: Natural brass with aged/patina effect
- Cable Length: 1m

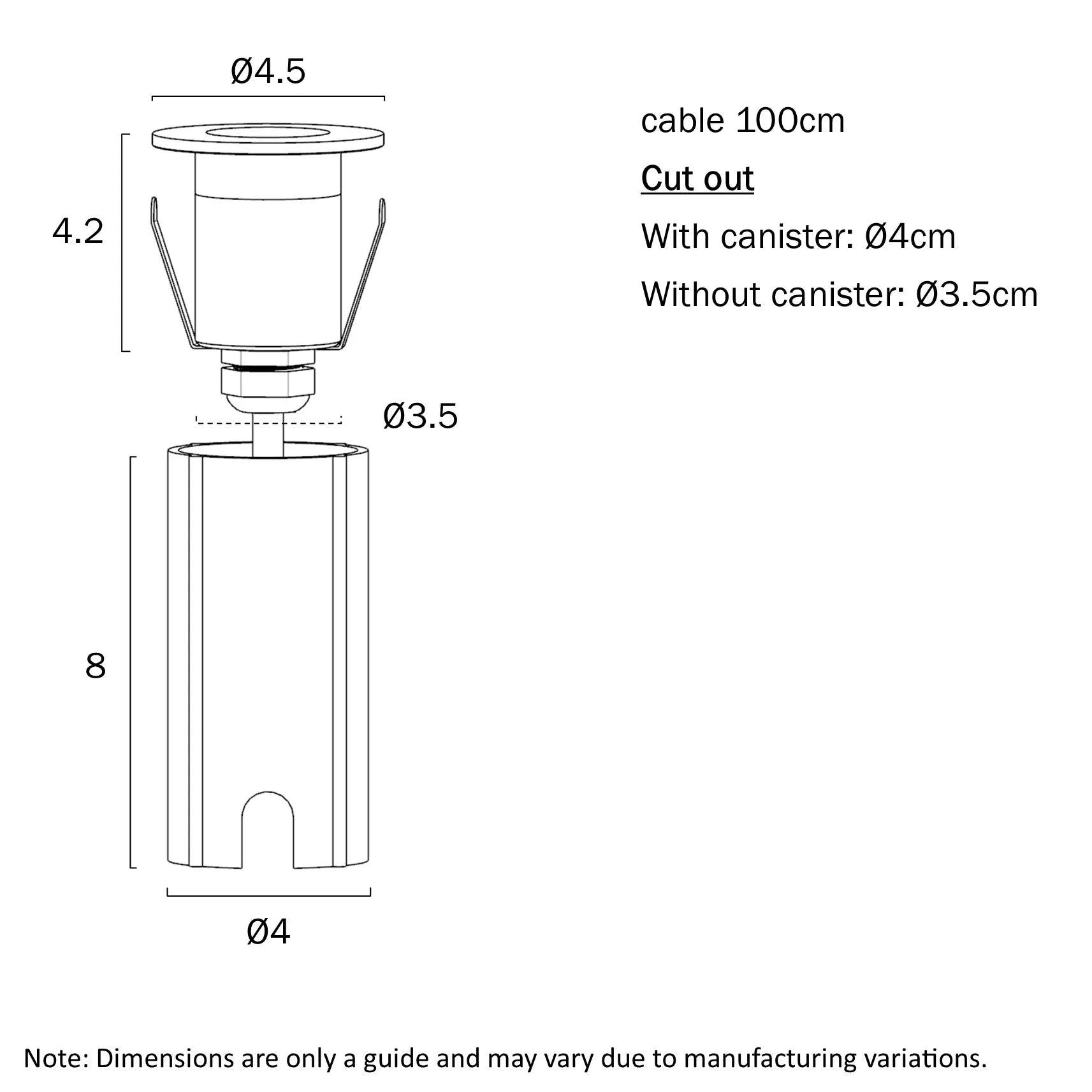

- Cut-out Diameter: 35mm without canister or 40mm with canister
- Approvals: RCM
- Dimmable: No
- Dimensions (H x L x W): 80mm x 45mm x 45mm
- Weight: 0.2 kg
Key Features

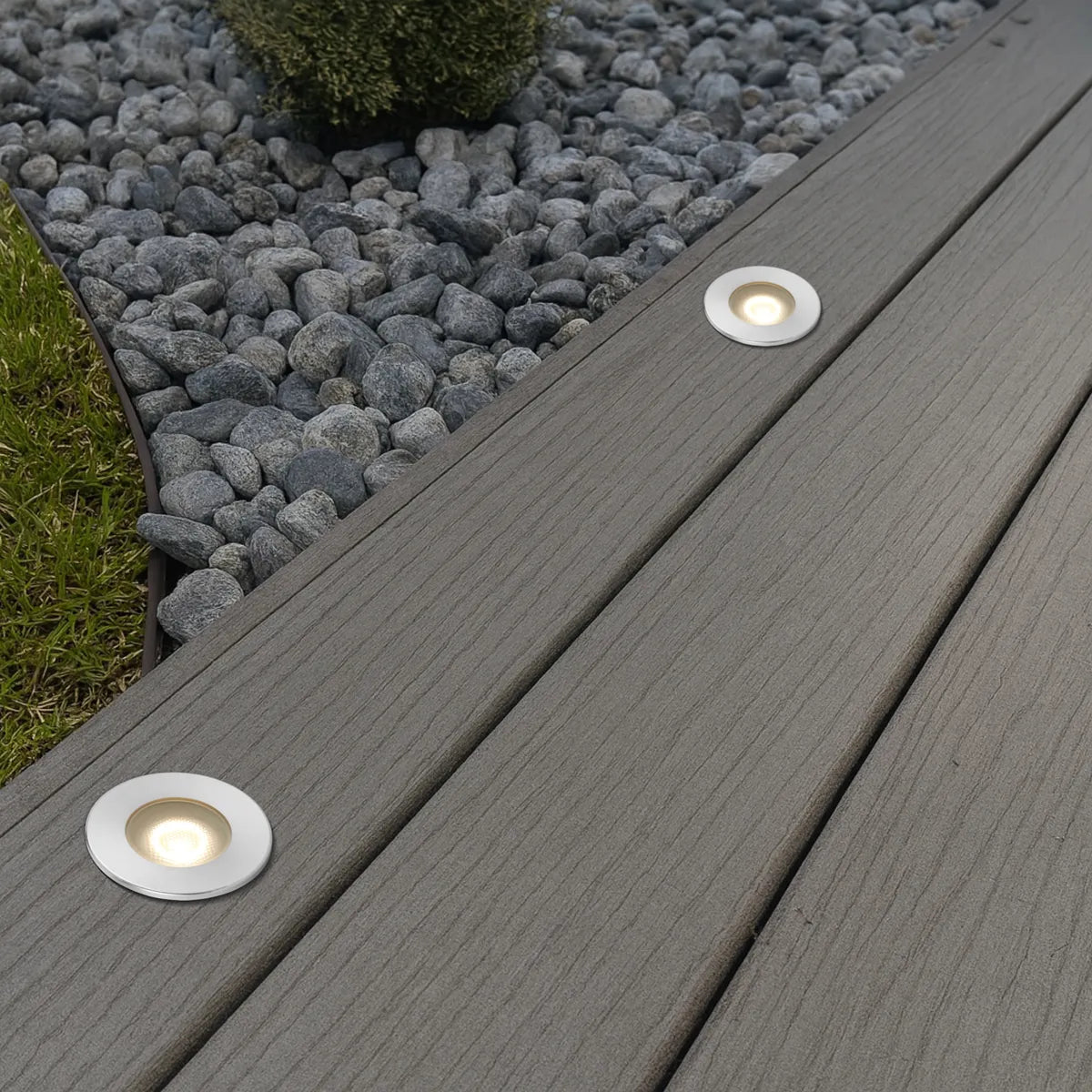

- Compact inground fitting for outdoor architectural lighting
- Suitable for pathways, decks, steps and concrete installations
- Integrated warm white LED light source
- IP67-rated construction for outdoor exposure
- Solid brass body with a natural aged finish
- Low-voltage 24V operation
- Flush, low-profile design
- 45° beam angle for focused upward illumination
Professional Installation Requirements
- Installation must be completed by a licensed electrician using a compatible 24V DC driver or lighting system. Install the electrical supply in accordance with AS/NZS 3000 and follow the manufacturer's installation instructions.
Applications
- Outdoor pathway and garden lighting
- Deck and patio illumination
- Inground architectural accent lighting
- Step and stair-edge lighting
- Landscape feature lighting
- Low-voltage residential and commercial exterior lighting
Standards & Compliance
- Installation in accordance with AS/NZS 3000 Wiring Rules
- RCM approval marking stated by the manufacturer
Environmental Benefits
- Low 1W power consumption helps reduce operating energy use
- Integrated LED technology avoids regular globe replacement and associated waste
- Solid brass components are durable and recyclable at end of life
- 24V low-voltage operation supports safer, energy-efficient outdoor lighting systems
- IP67 construction and corrosion-resistant brass can support a longer service life when maintained correctly
Warranty Information
3-year replacement warranty against manufacturing defects, subject to Telbix warranty conditions. Installation must be completed by a licensed electrician; labour and installation costs are generally excluded.
Available Now
Available through Telbix and authorised Australian lighting distributors; distributor stock and lead times may vary.
