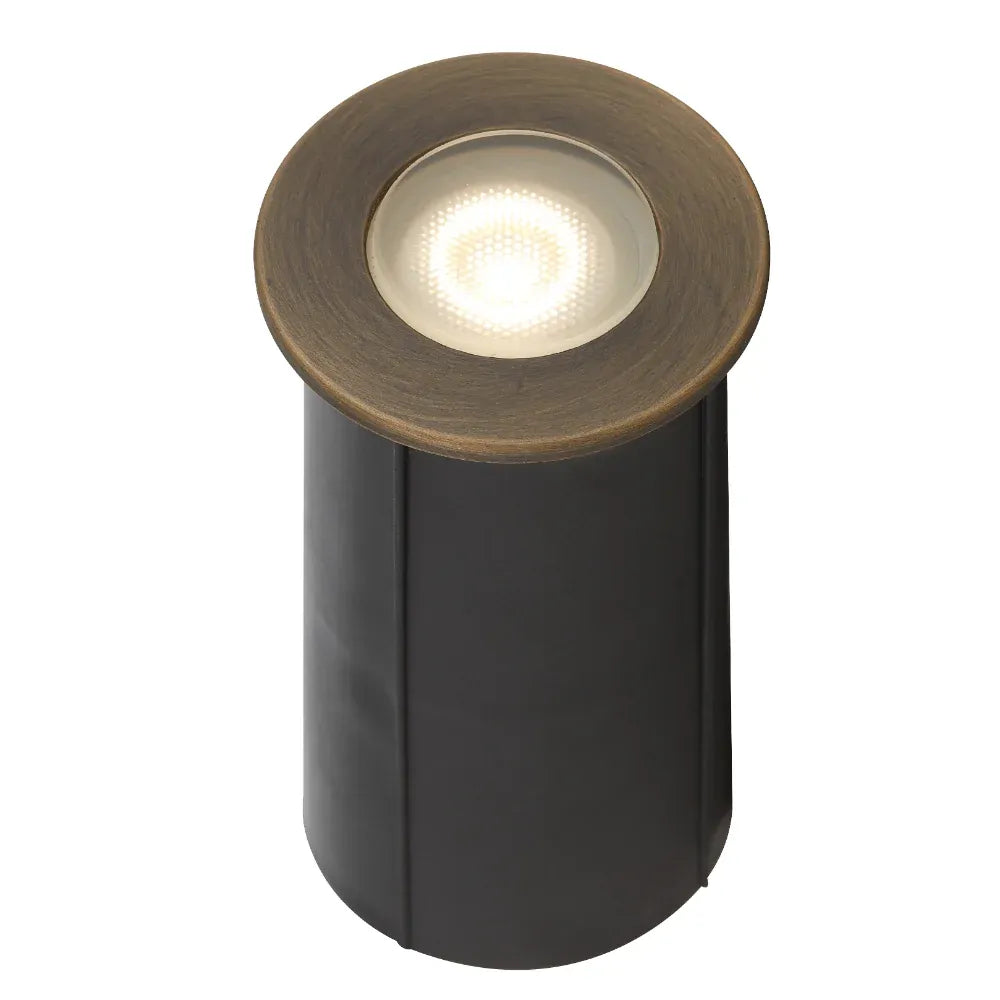

Inground Light LED 1W 24V 3000K IP67 45mm Antique Brass Halon Telbix
Telbix Halon brass inground light features 1W 24V LED, 3000K warm white and 110lm output. IP67, 45mm diameter, 80mm depth, 1m cable. Antique brass finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Halon G1-AB324, Halon LED Inground Uplighter, Halon Outdoor Inground Light
Technical Specifications
- Input Voltage: 24V DC
- Total Wattage: 1W
- Light Source: Integrated LED
- Colour Temperature: 3000K warm white
- Light Output: 110 lm
- Beam Angle: 45°
- Colour Rendering Index: >90
- IP Rating: IP67
- Electrical Protection: Class III extra-low voltage
- Material: Solid brass and glass
- Finish: Antique brass with patina oxide finish
- Cable Length: 1m

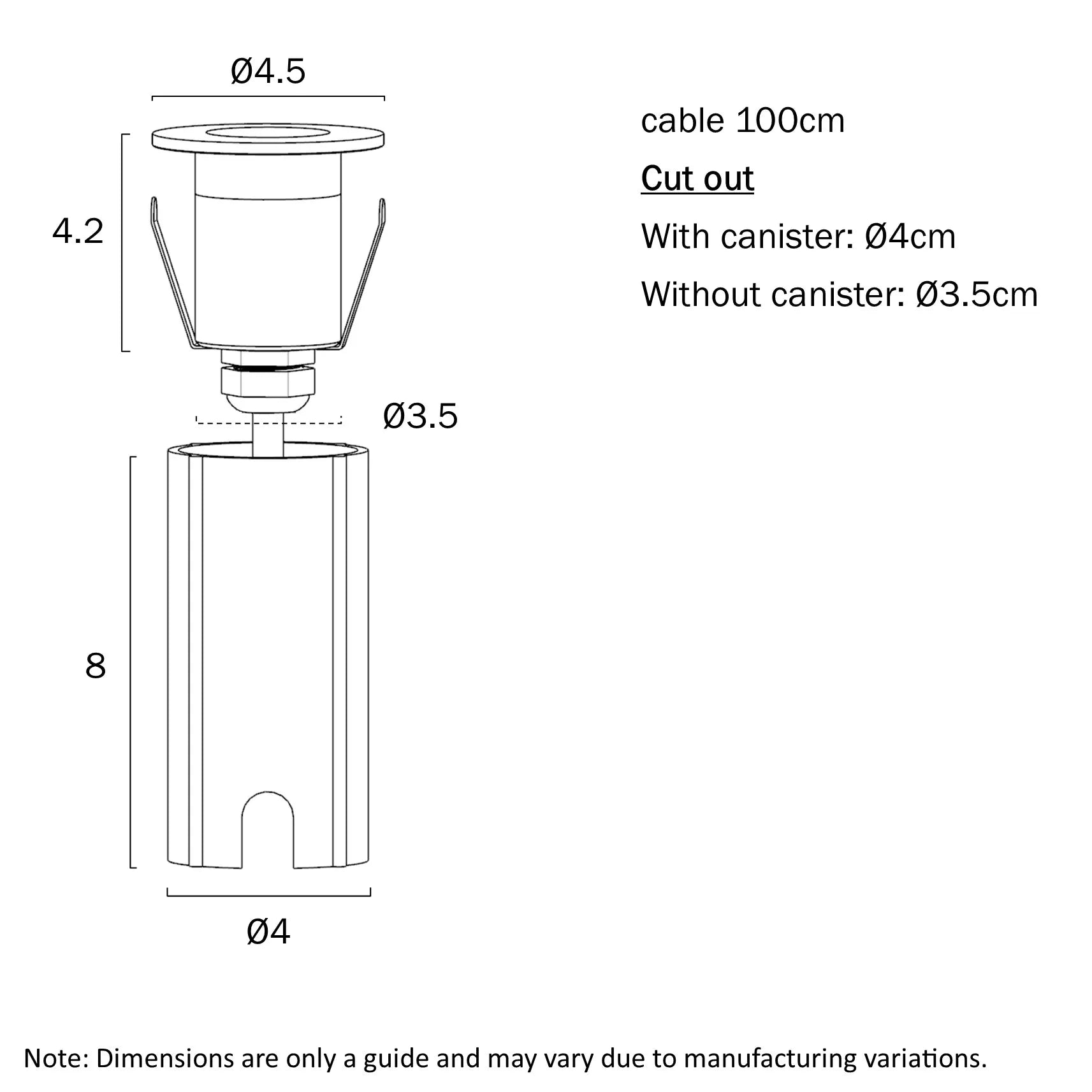

- Cut-Out: 35mm without canister; 40mm with canister
- Approvals: RCM
- Light Source Included: Yes
- Dimensions (H x L x W): 80mm x 45mm x 45mm
- Weight: 0.2 kg
Key Features
- Low-voltage 24V LED operation for outdoor landscape lighting
- Integrated 1W LED with warm 3000K illumination
- IP67 protection against dust and temporary water immersion
- Solid brass body with antique finish that naturally develops patina

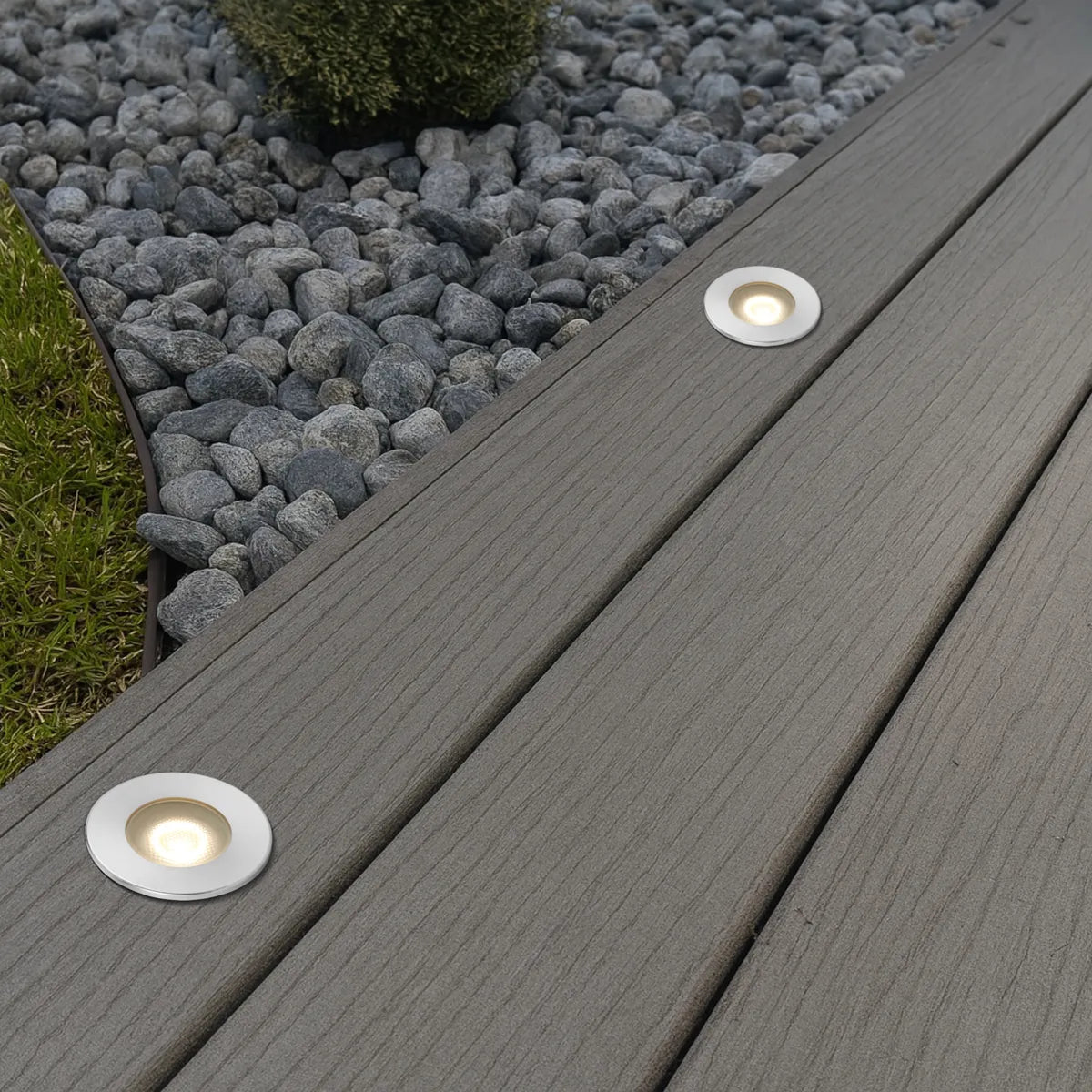

- Suitable for deck, concrete, pathway, step and architectural applications
- High colour rendering with CRI greater than 90
- Recessed inground installation with optional canister
- Supplied with 1m connection cable
Professional Installation Requirements
- Must be installed by a licensed electrician using a suitable 24V DC power supply. Electrical installation must comply with AS/NZS 3000 and the manufacturer's installation instructions. Do not connect directly to mains voltage.
Applications
- Garden pathways and walkways
- Decking and outdoor entertaining areas
- Steps, stairs and entry points
- Driveways and landscape features
- Outdoor architectural and façade lighting
- Concrete and recessed landscape installations
Standards & Compliance
- AS/NZS 3000: Electrical installations and wiring rules
Environmental Benefits
- Low 1W power consumption reduces operating energy use compared with higher-wattage outdoor luminaires
- Integrated LED technology supports long service life and reduces lamp replacement waste
- Solid brass construction is durable and recyclable at end of service life
- 24V extra-low-voltage operation supports safer outdoor lighting system design
Warranty Information
3-year replacement warranty against manufacturing defects, subject to Telbix warranty terms, compliant installation and applicable Australian Consumer Law. Telbix requires lighting products to be installed by a qualified licensed electrician; clearance, sale or obsolete products may have a reduced warranty period. ([telbix.com](https://www.telbix.com/warranty-policy))
Available Now
Available through Telbix and authorised Australian lighting distributors; live stock availability varies. ([telbix.com](https://www.telbix.com/shop/halon-24v-exterior-led-inground-light-4690?utm_source=openai))
