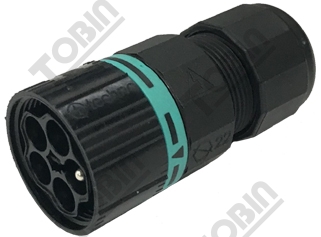

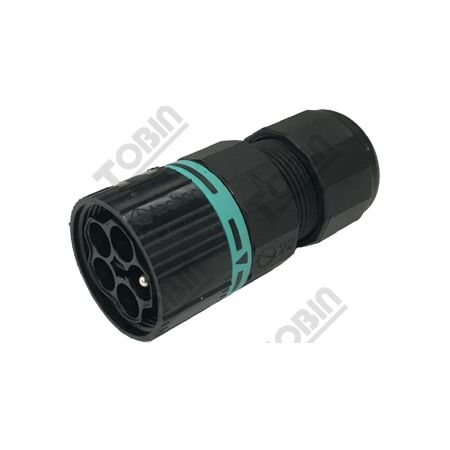

Inline Female Socket 5P | IP68 Rated | 17.5A Current | 23mm Diameter | by Tobin
The Inline Female Socket 5P is designed for robust industrial applications, featuring an IP68 rating for superior dust and water protection. With a 17.5A current rating and a compact 23mm diameter, this socket is perfect for outdoor electrical equipment and harsh environments. Ensure reliable connections in industrial machinery with this durable and compliant solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inline Female Socket 5P | IP68 Rated | 17.5A Current | 23mm Diameter | by Tobin
Brand: Tobin
SKU: THB.387.B5A
Alternatively Known As: 5 Pin Female Industrial Socket, IP68 5P Connector, Inline Female Plug
Technical Specifications
- IP Rating: IP68
- Pin Count: 5
- Current Rating: 17.5A
- Connector Type: Female Socket
- Diameter: 23mm
- Length: 85mm
- Dimensions (H x L x W): 23mm x 85mm x 23mm
- Weight: 0.2 kg
Key Features
- IP68 rated for dust and water ingress protection
- 5-pin configuration suitable for industrial use
- Rated current of 17.5A
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and safety compliance.
Applications
- Industrial machinery connections
- Outdoor electrical equipment
- Harsh environment electrical installations
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable IP68 design reduces need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Tobin Inline Female Socket 5P IP68 17.5A is available now for immediate purchase. Ideal for industrial and outdoor electrical connection applications.
