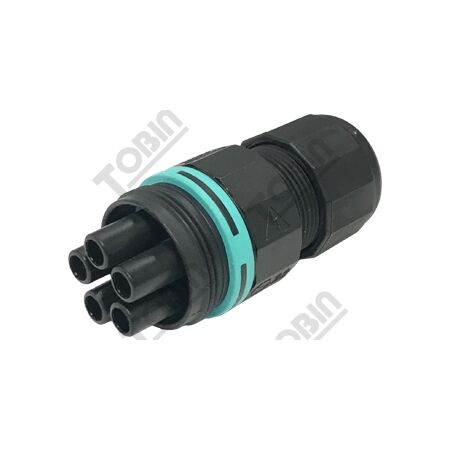

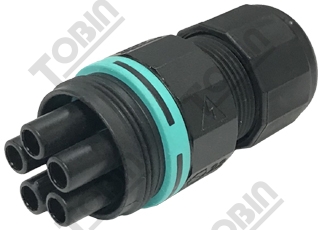

Inline Male Plug 5P | IP68 Rated | 17.5A Current | 0.5 - 4.0 mm² Compatibility | by Tobin
The Inline Male Plug 5P is designed for robust industrial electrical connections, featuring an IP68 rating for superior dust and water protection. With a 17.5A current rating and compatibility for cable sizes from 0.5 to 4.0 mm², this plug is perfect for outdoor and harsh environment installations, ensuring secure and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inline Male Plug 5P | IP68 Rated | 17.5A Current | 0.5 - 4.0 mm² Compatibility | by Tobin
Brand: Tobin
SKU: THB.387.A5A
Alternatively Known As: 5 Pin Male Industrial Plug, IP68 Male Connector, Techno Mini Plug
Technical Specifications
- IP Rating: IP68
- Number of Pins: 5
- Current Rating: 17.5A
- Plug Type: Inline Male
- Cable Size Compatibility: 0.5 - 4.0 mm²
- Dimensions (H x L x W): 23mm x 85mm x 23mm
- Weight: 0.1 kg
Key Features
- IP68 rated for dust and water ingress protection
- 5-pin configuration
- Rated current of 17.5A
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper sealing.
Applications
- Industrial electrical connections requiring secure and waterproof plugs
- Outdoor and harsh environment electrical installations
- Techno mini connector systems
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable IP68 design reduces need for frequent replacements, minimizing waste
- Sealed construction prevents environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Tobin's warranty policy for details.
Available Now
The Tobin Inline Male Plug 5P 17.5A IP68 is available for immediate purchase, ideal for industrial and outdoor electrical connection applications.
