Trade Discount 24%

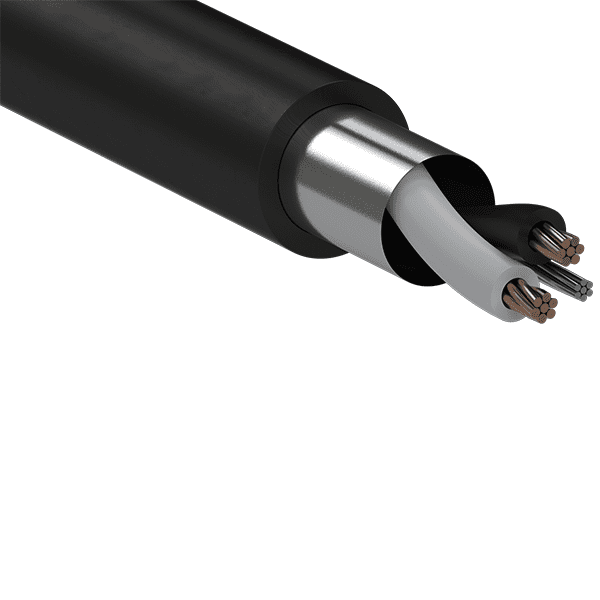

Instrumentation Cable 1 Pair 1.0mm Screened Green Per Metre Eltech
Eltech instrumentation cable features 1 pair 1.0mm 7/040 conductors, overall screen and RAL 6018 green sheath. Ideal for instrument and control wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Instrumentation Cable 1‑Pair 1.0 mm² Screened, ELT7401P
Technical Specifications
- Conductor Size: 1.0 mm²
- Conductor Construction: 7 × 0.40 mm strands
- Number of Cores: 1 pair
- Screening: Overall screen for EMI protection
- Outer Sheath Material: PVC
- Inner Sheath Colour: Black
- Drum Length: 500 m (500 m drums available)
- Dimensions (H x L x W): 8mm x 500000mm x 8mm
- Weight: 5 kg
Key Features
- Overall screened to reduce electromagnetic interference
- Flexible stranded conductor (7 strands) for easier installation
- Durable black PVC outer sheath
- Available in 100 m increments, ideal for project use
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with instrumentation cabling to ensure proper screening termination and compliance with electrical installation standards.
Applications
- Instrumentation and control wiring in industrial settings
- Signal and data transmission in automation systems
- Monitoring and control cables in manufacturing or process plants
Standards & Compliance
- AS/NZS 2373:2003 – Twisted pair control cables for control, supervisory, protection and instrumentation circuits
- AS/NZS 5000.3 – Electrical cables with polymeric insulation for control and instrumentation circuits
Environmental Benefits
- Durable PVC construction extends service life, reducing replacement waste
- Screening preserves signal integrity, supporting efficient system operation
Warranty Information
Seven‑year warranty when purchased and installed by a licensed electrician and installed according to manufacturer instructions, subject to Eltech terms and conditions ([eltech.com.au](https://eltech.com.au/wp-content/uploads/2022/07/Terms-and-Conditions-of-Trade-Eltech.pdf?utm_source=openai)).
Available Now
Available in 100 m increments through authorised Australian distributors, with 500 m drums stocked in Brisbane, Melbourne and Sydney ([eltech.com.au](https://eltech.com.au/shop/cables-and-installation/data-and-instrumentation-cables/instrumentation-cables-data-and-instrumentation-cables/pvc-instrumentation-cables-data-and-instrumentation-cables/instrumentation-cable-1-pair-1-0mm-7-040-o-a-screened/?utm_source=openai)).
