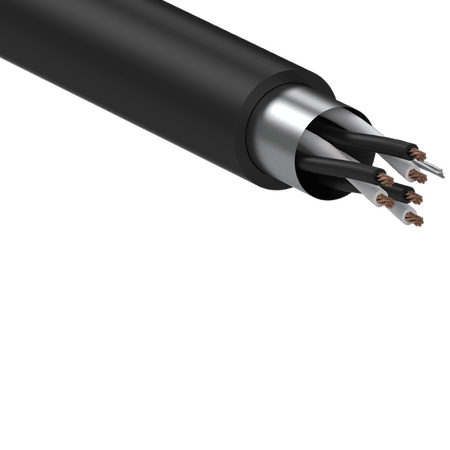

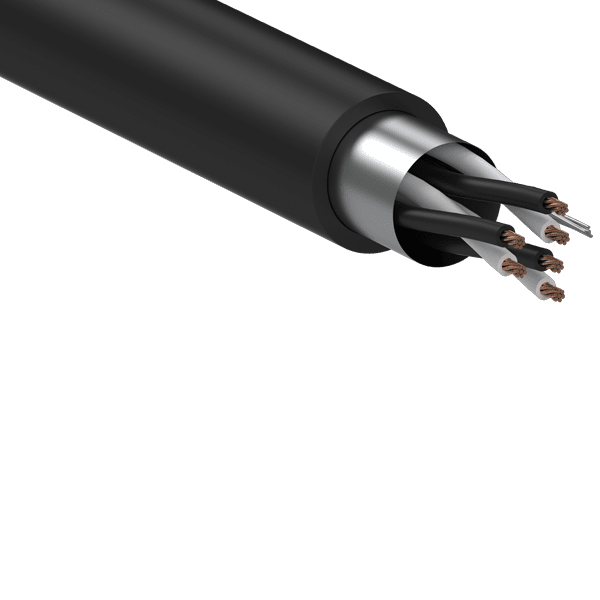

Instrumentation Cable 3 Pair 1.5mm LSZH Black Per Metre Eltech

BRAND: Eltech
SKU: ELT7503P-ENV
$6.80 List price: $9.10
+ −
30 Days Return Electricians Unlock Trade Access
Eltech instrumentation cable features 3 pairs of 1.5mm 7/050 conductors, overall screen and black LSZH sheath. Ideal for instrument and control wiring.

Alternatively Known As: Eltech ELT7503P Instrumentation Cable

Technical Specifications
  • Conductor Size: 1.5 mm² (7/0.50 mm strands)
  • Number of Conductors: 3 pair
  • Screening: Overall screen for EMI protection
  • Sheath: Black PVC
  • Minimum Order Quantity: 10 m increments
  • Drum Length: 500 m
  • Dimensions (H x L x W): 11.7mm x 1000mm x 11.7mm
  • Weight: 0.141 kg
Key Features
  • Three twisted pairs for instrumentation and control signals
  • Overall screening provides effective EMI shielding
  • Durable black PVC outer sheath
  • Available in convenient metre increments
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or technician experienced with instrumentation and screened cable installation to ensure correct screening and signal integrity.
Applications
  • Instrumentation and control wiring in industrial environments
  • Signal transmission in automation and control systems
  • Wiring for instrumentation and monitoring equipment
Standards & Compliance
  • Meets ELT series instrumentation cable standards (PDF spec) including Conductor to AS/NZS 1125, Insulation and sheath to AS/NZS 3808
Environmental Benefits
  • Durable PVC sheath reduces replacement frequency
  • Overall screening helps maintain signal integrity, reducing system energy loss
Warranty Information

Standard manufacturer warranty applies; refer to Eltech general warranty policy.

Available Now

Available through authorised Australian electrical wholesalers in 10 m increments.
